Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the engine cover.
  3. Disconnect the ignition coil connector (A).

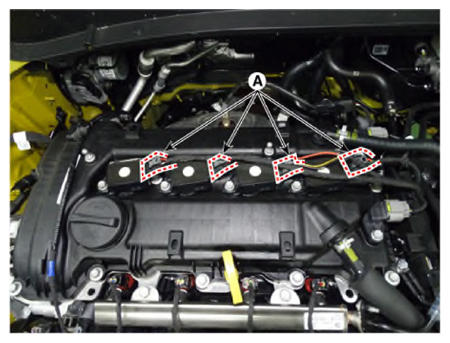

    G13482840Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

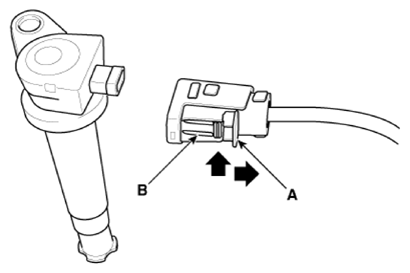

      G13482841Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the ignition coil (A) after loosening the mounting bolts.

    Tightening torque  :

    9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)

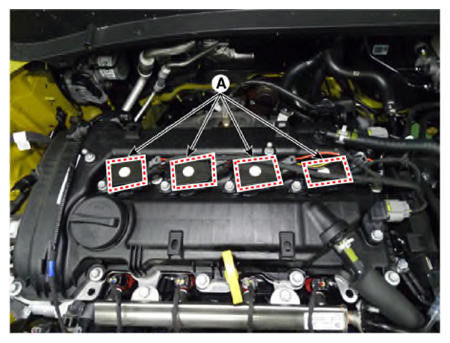

    G13482842Courtesy of KIA MOTORS AMERICA, INC.
