System Inpection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
 1. Connect KDS/GDS to Data Link Connector (DLC)
2. Perform "Vehicle S/W Management" of concerned component with KDS		 Fig. 1 to 5

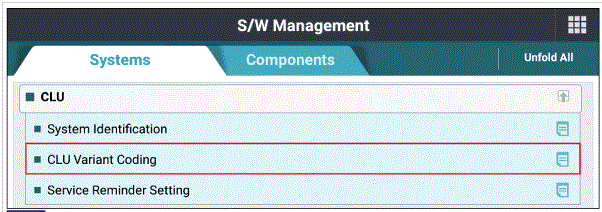

G00614869Courtesy of KIA MOTORS AMERICA, INC.

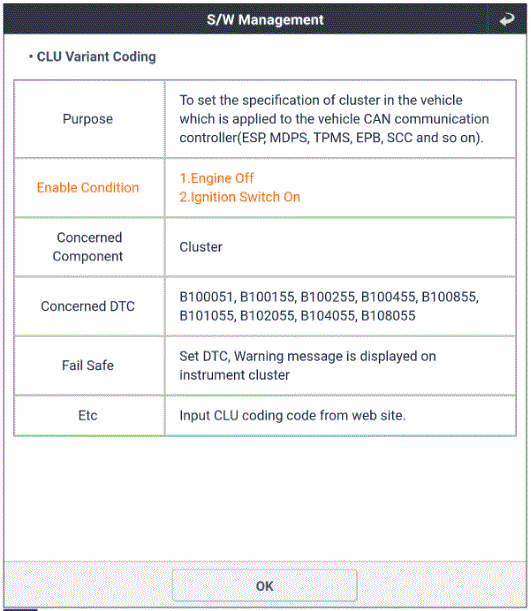

G00614870Courtesy of KIA MOTORS AMERICA, INC.

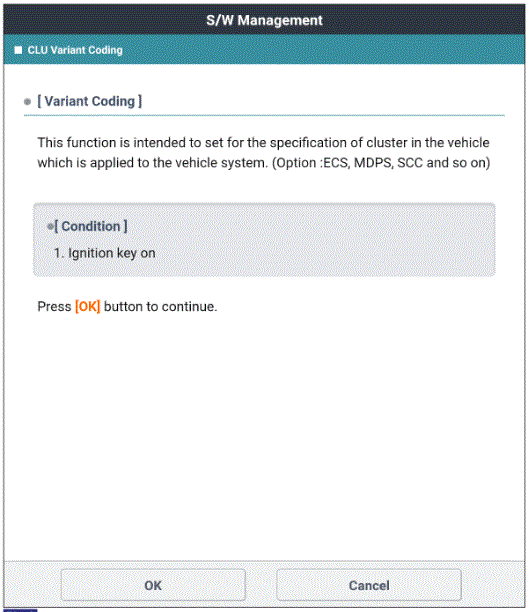

G00614871Courtesy of KIA MOTORS AMERICA, INC.

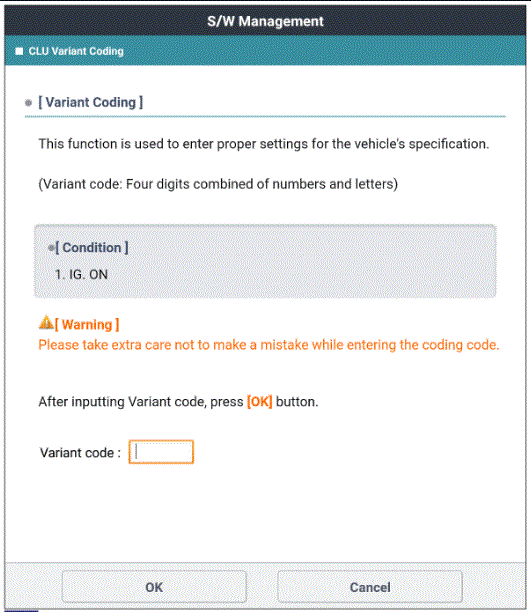

G00614872Courtesy of KIA MOTORS AMERICA, INC.

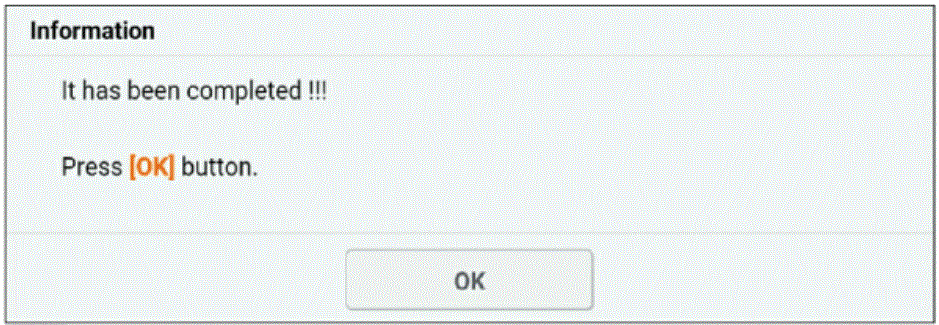

G00614873Courtesy of KIA MOTORS AMERICA, INC.
