Repair Procedures: Removal: Buzzer
- Disconnect the negative battery terminal.
- Remove the engine room under cover.
G 1.6 T-GDI (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
G 2.0 Nu MPI (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

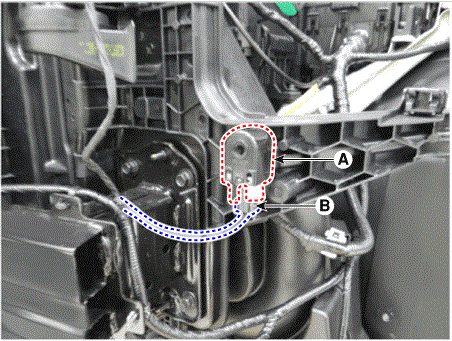

- Remove the buzzer (A) after disconnecting the connector (B).
