Repair Procedures: Installation

Check that the shift lever is placed in the "N" position.

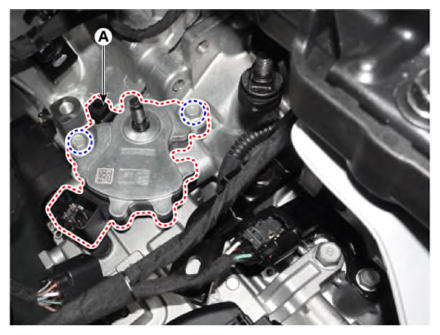

Lightly tighten the inhibitor switch mounting bolts after installing the inhibitor switch (A).

Courtesy of KIA MOTORS AMERICA, INC.

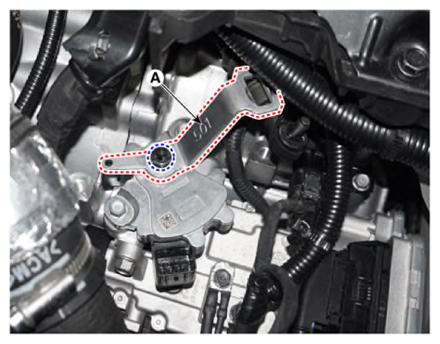

Lightly tighten the manual control lever mounting nut after installing the manual control lever (A).

Courtesy of KIA MOTORS AMERICA, INC.

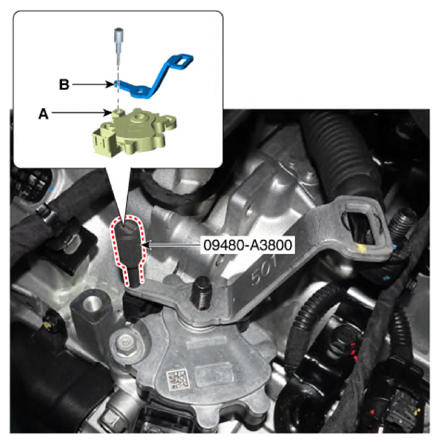

Align the hole (A) in the manual control lever with the "N" position hole (B) of the inhibitor switch and then insert the inhibitor switch guide pin (09480-A3800).

Courtesy of KIA MOTORS AMERICA, INC.

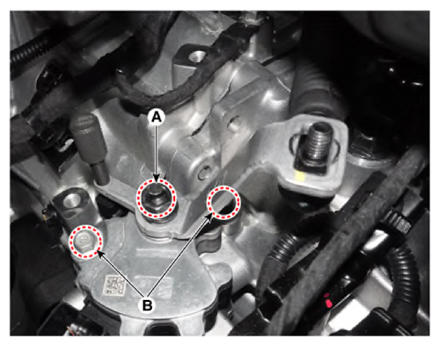

Tighten the nut (A) and bolts (B) with the specified torque.
Tightening torque:
1. 17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb.ft)
2. 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
Lightly tighten the shift cable mounting nut (A).

Courtesy of KIA MOTORS AMERICA, INC.

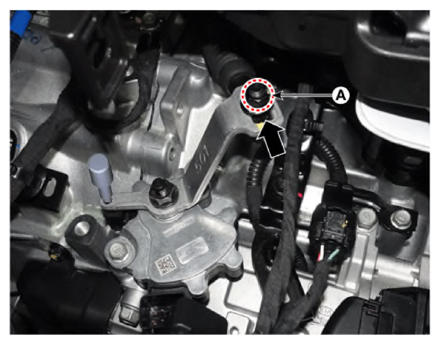

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening torque:

9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

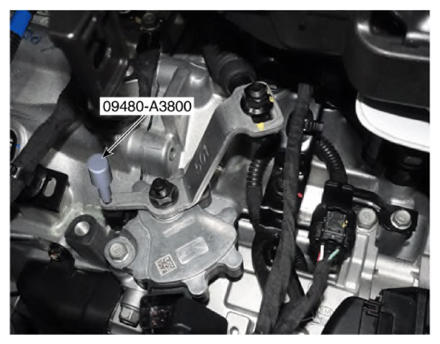

Remove the inhibitor switch guide pin (09480-A3800) from the hole.

Courtesy of KIA MOTORS AMERICA, INC.

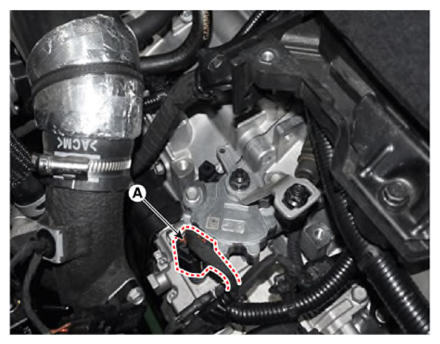

Connect the inhibitor switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
