Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

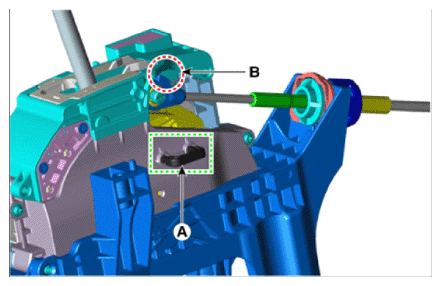

Before installing the shift cable, insert "N range fixing pin" (A) of shift lever after checking the shift lever and manual control lever are on "N" range.

Install the shift cable after checking the direction of projection (B) to prevent incorrect assembly.

Courtesy of KIA MOTORS AMERICA, INC.

Mind the installation direction of snap pin.

Courtesy of KIA MOTORS AMERICA, INC.

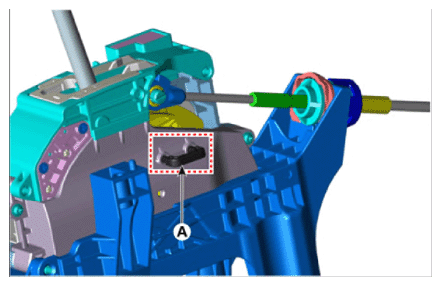

Make sure to get rid of "N range fixing pin" (A) after installing the shift lever assembly.
