Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.

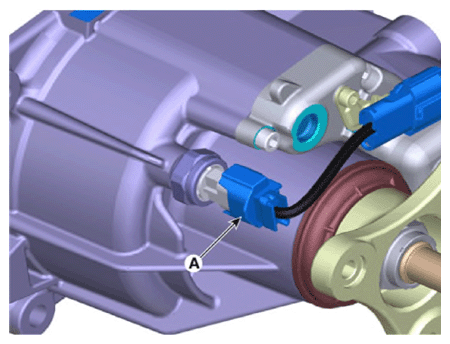

- Disconnect the pressure sensor connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

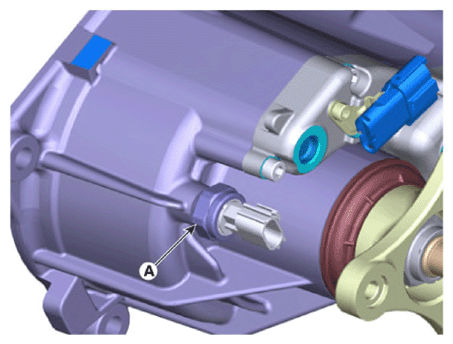

- Remove the pressure sensor (A).
NOTE:
Keep going horizontal state to prevent leaks during remove the pressure sensor.
Tightening torque:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
