Components And Components Location: Component

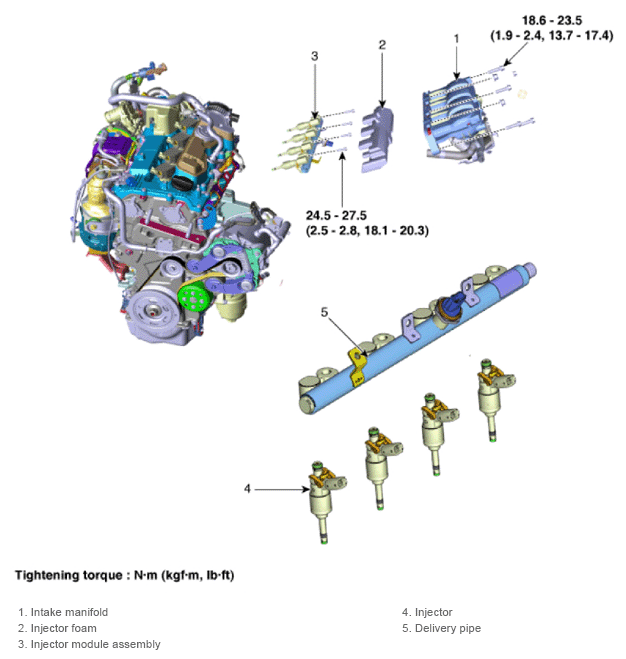

Fig 1: Injector Components Location With Torque Specification
G13576255Courtesy of KIA MOTORS AMERICA, INC.

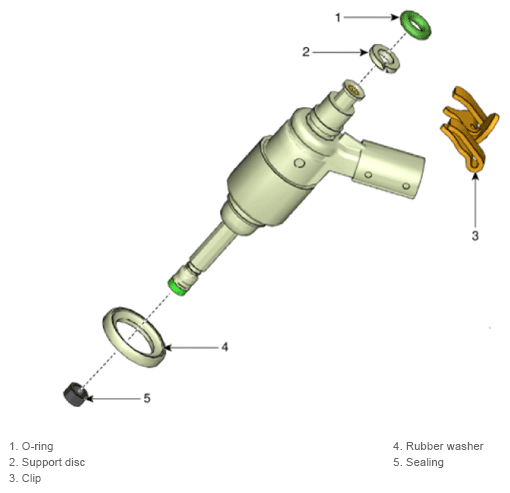

G13576256Courtesy of KIA MOTORS AMERICA, INC.
