Engine Control System Diagnosis (HEV) (11 Of 11)
>>
DTC U2003-00: Invalid Data Received From CVVD Motor Control Module
>>
DTC Information
>>
Diagnostic Flow Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

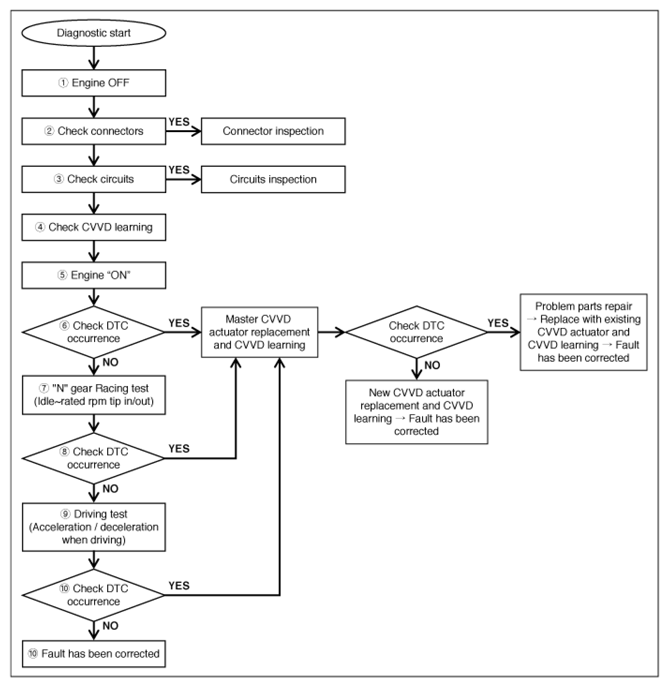

Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
