Description And Operation: Description

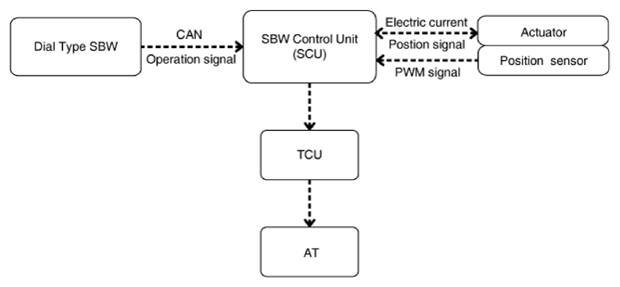

Controls the electric shift actuator by receiving a dial operated signal.
Transmits the signal received from the position sensor (P/R/N/D position) to the TCM.

Courtesy of KIA MOTORS AMERICA, INC.
