Ignition System Check
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| connector | Terminal | connector | Terminal | ||
|

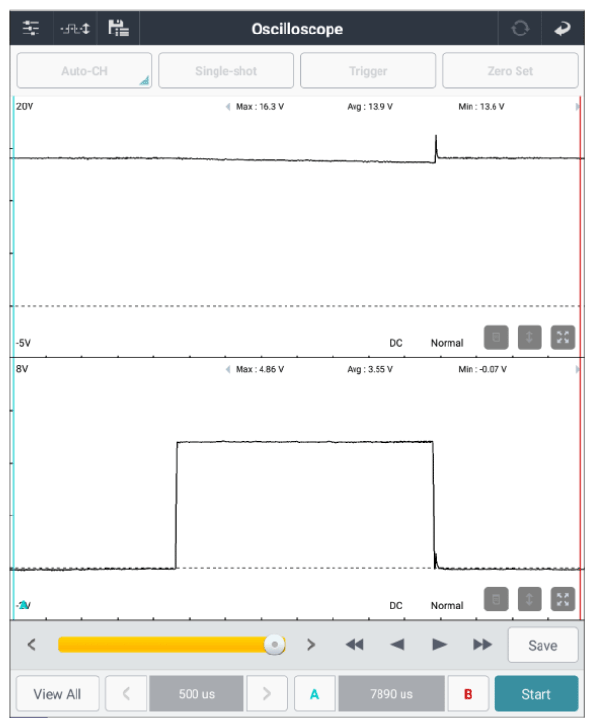

Ignition coil connector | 4 (power) | Chassis ground | - | Fig.1 |
| 2 (control) | |||||
Good
- Go to "Check Injector performance " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the ignition coil and go to "Verification of Repair " procedure.
