Removal And Installation

Open the fuel filler door.

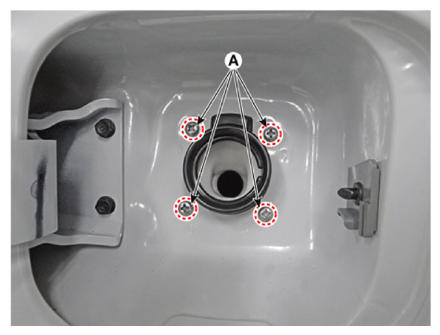

Remove the filler-neck mounting bolts (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 Ib.in)

Courtesy of KIA MOTORS AMERICA, INC.

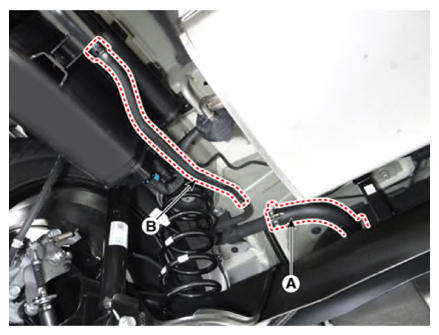

Disconnect the fuel filler hose (A) and ventilation hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

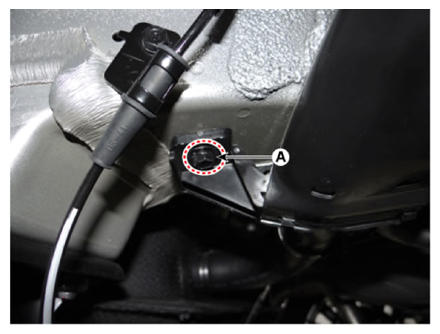

Remove the filler neck assembly mounting bolt (A).
Tightening torque:

8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 Ib.ft)

Courtesy of KIA MOTORS AMERICA, INC.

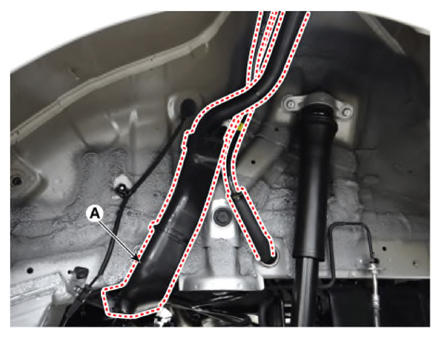

Remove the filler neck assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
