Universal Joint Assembly

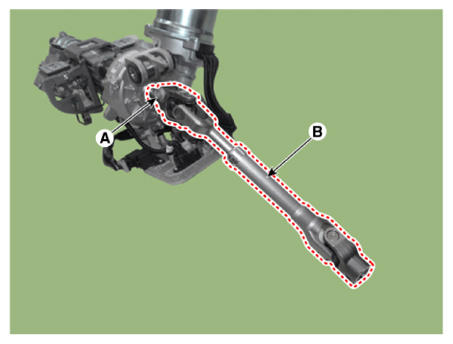

  1. Loosen the bolt (A) and then remove the universal joint assembly (B).

    Tightening torque:

    49.0 - 52.0 N.m (5.0 - 5.3 kgf.m, 36.2 - 38.3 lb.ft)

    G13281537Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the bolt.
  2. Assemble in the reverse order of disassembly.
