Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the rear pillar trim.
(Refer to Body - "REAR PILLAR TRIM ")

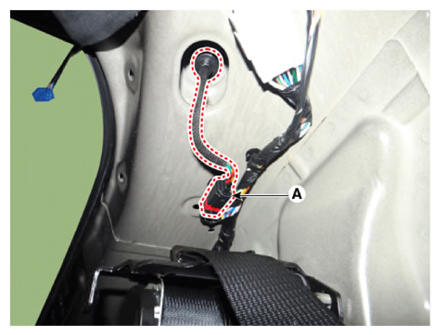

- Disconnect the power liftgate spindle connector (A).

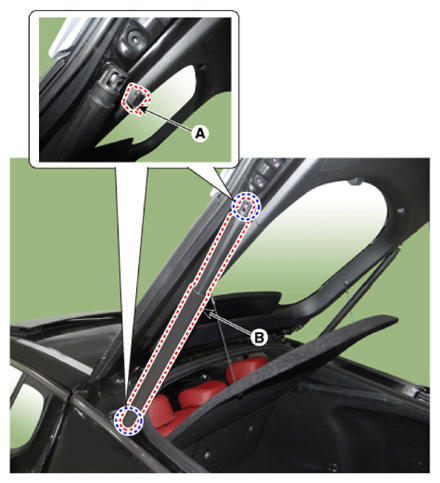

- Using a screwdriver, lift the socket clips (A) up slightly.
- Remove the power liftgate spindle assembly (B).CAUTION:
- Work in a group of two or more when removing and installing the PTG spindle.
- Take care not to close the tail gate while the PTG spindle is being removed.
- Do not reuse the PTG spindle drive if it is dropped on the ground. Discard any dropped PTG spindles.
- When carefully removing the socket clip, take extra care not to lose the socket clip as it may pop out.
- When carefully removing the socket clip, take care not to scratch the clip surface as scratches may cause corrosions in the future.
