Removal And Installation

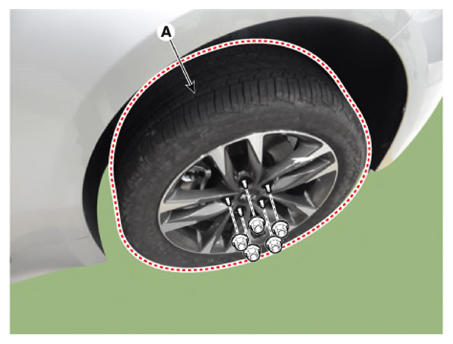

1. Remove wheel nuts, wheel and tire (A) from front hub.

   Tightening torque:

   107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: Be careful not to damage the hub bolts when removing the wheel and tire.

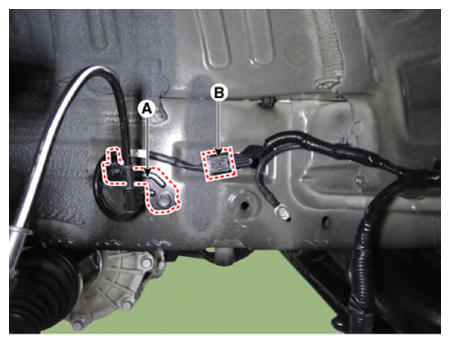

2. Disconnect the front wheel speed sensor connector from the front axle.

   Courtesy of KIA MOTORS AMERICA, INC.

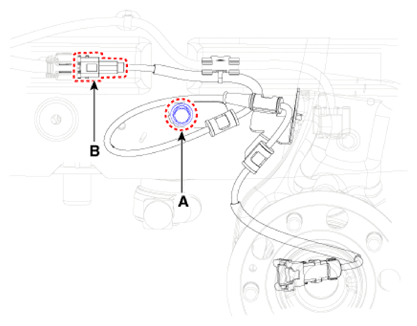

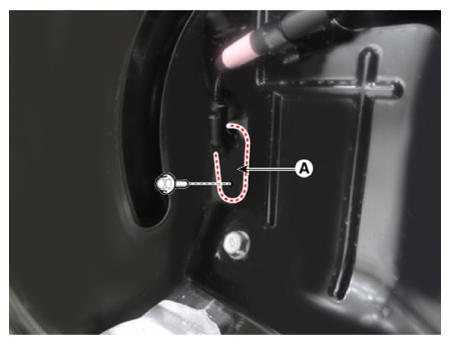

3. Loosen the wheel speed sensor bracket bolt (A), and then disconnect the wheel speed sensor connector (B).

   Tightening torque:

   16.7 - 25.5 N.m (2.0 - 3.0 kgf.m, 12.3 - 18.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

4. Install in the reverse order of removal.

[AWD]

1. Remove wheel nuts, wheel and tire (A) from front hub.

   Tightening torque:

   107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: Be careful not to damage the hub bolts when removing the wheel and tire.

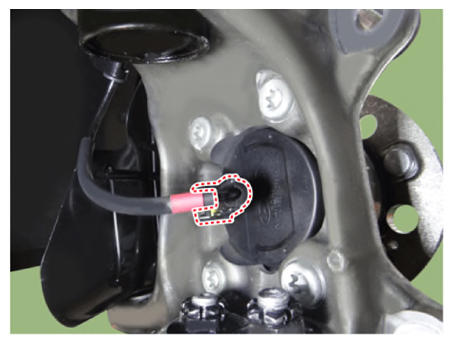

2. Loosen the wheel speed sensor bolt and then remove the wheel speed sensor (A).

   Tightening torque:

   6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.6 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the wheel speed sensor bracket.

   Tightening torque:

   6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.6 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

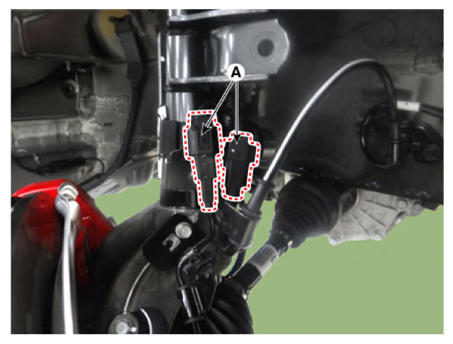

4. Disconnect the ECS connector (A) and then remove the bracket.

   Courtesy of KIA MOTORS AMERICA, INC.

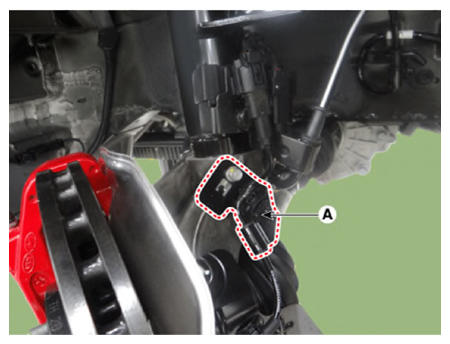

5. Remove the bracket (A) and the remove the connector (B).

   Courtesy of KIA MOTORS AMERICA, INC.

6. Install in the reverse order of removal.
