Components Location

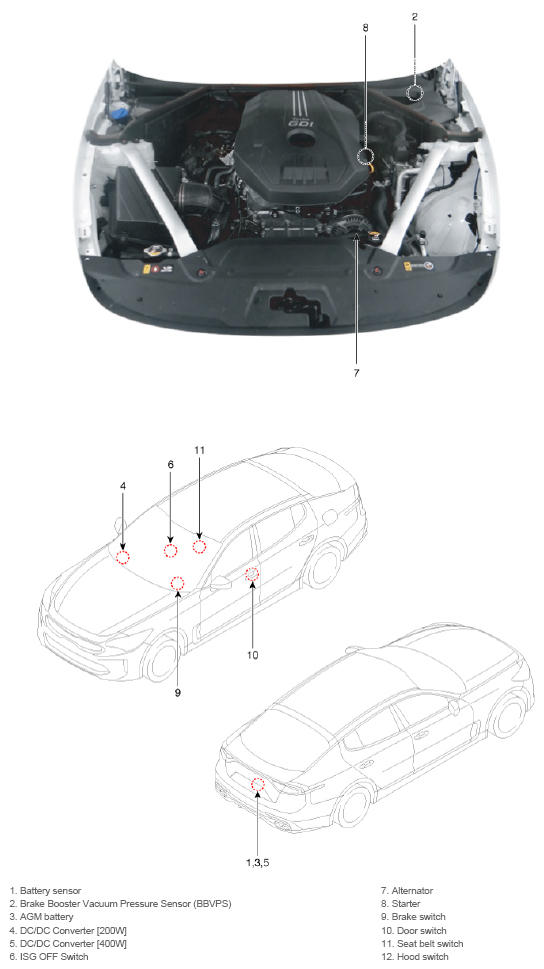

G13423602Courtesy of KIA MOTORS AMERICA, INC.

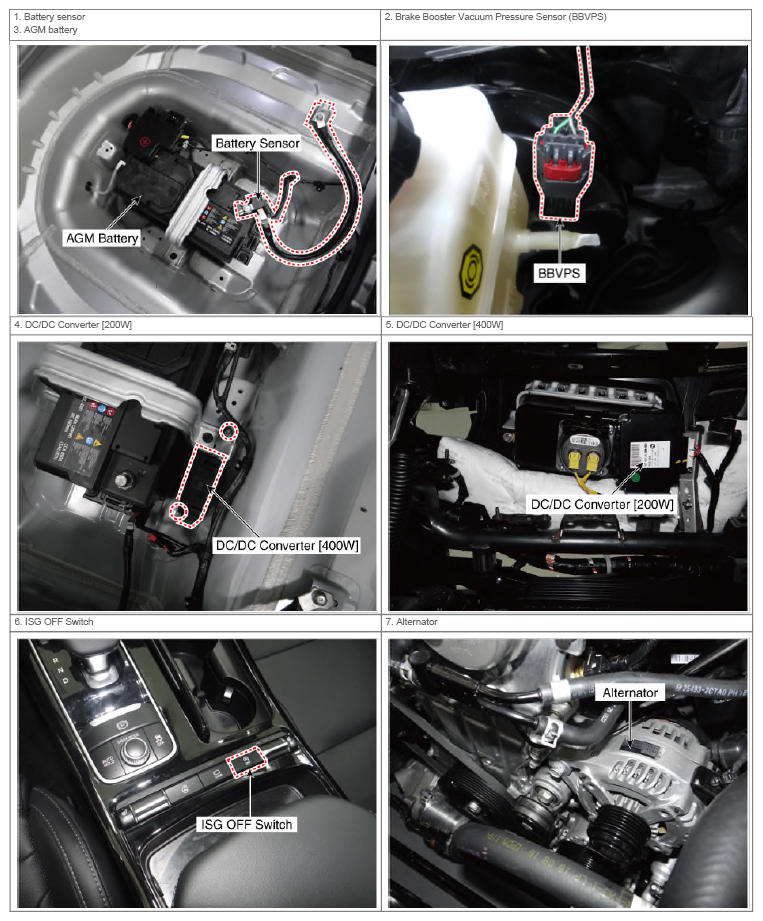

G13423603Courtesy of KIA MOTORS AMERICA, INC.

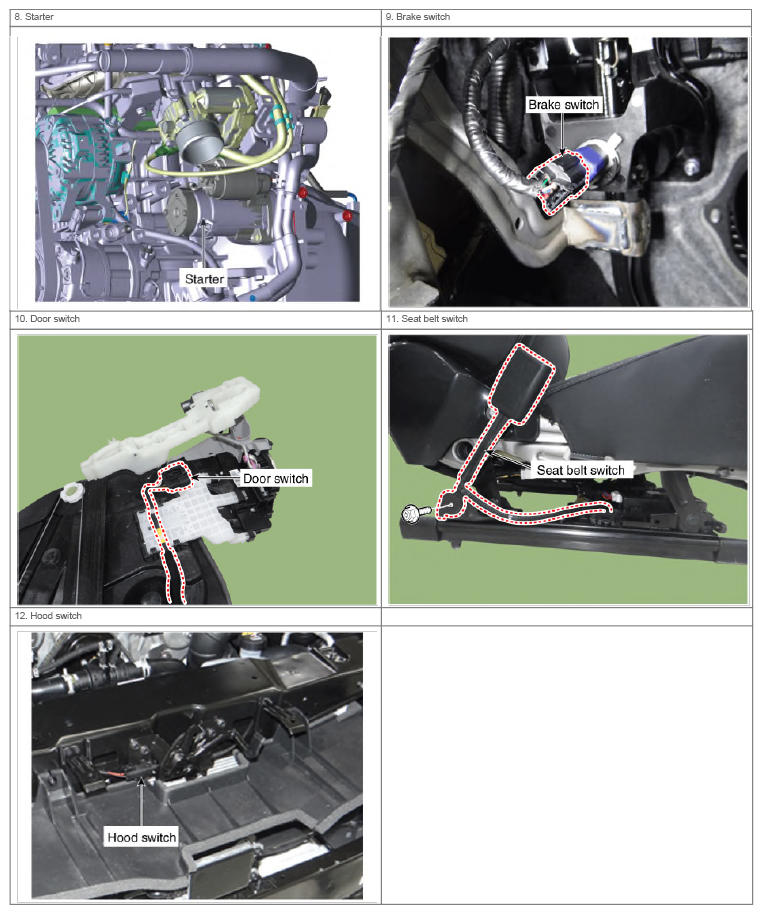

G13423604Courtesy of KIA MOTORS AMERICA, INC.
