Repair Procedures: Installation
NOTE:
- Do not reuse injector fixing clips.
- Install the component to the specified torque.
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
- Apply engine oil to the injector O-ring.
- Do reuse injector o-ring.
- Do not reuse bolts.
- When insert the injector, be careful not to damage the injector tip.
- Do not reuse the high pressure fuel pipe.
NOTE:

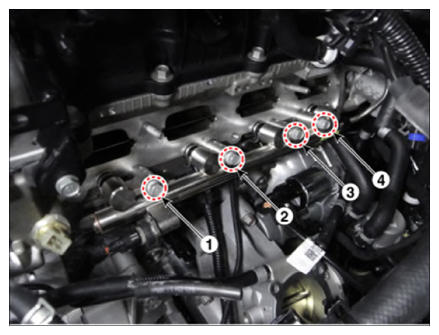

- When fastening the fuel delivery pipe mounting bolts, pretighten them by hand first, and then tighten them in the sequence ((2)→ (3)→ (1)→ (4)) in several passes to the specified torque.
- Install in the reverse order of removal.
