Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the turbo manifold module.

    (Refer to Engine Mechanical System - "TURBO MANIFOLD MODULE ")

  3. Disconnect the alternator connector (A), and remove the cable (B) from alternator "B" terminal.
    G13428290Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the alternator bolts (A).
G13428291Courtesy of KIA MOTORS AMERICA, INC.

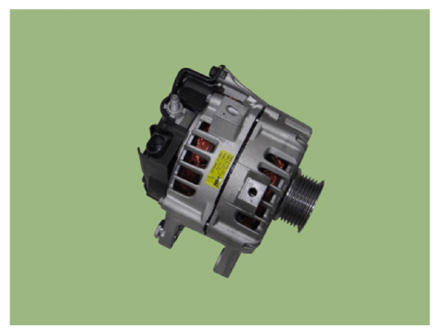

G13428292Courtesy of KIA MOTORS AMERICA, INC.
