Connector Assembly Status Test

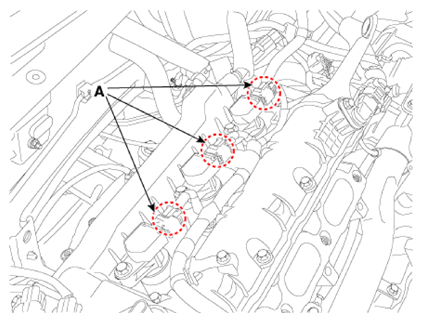

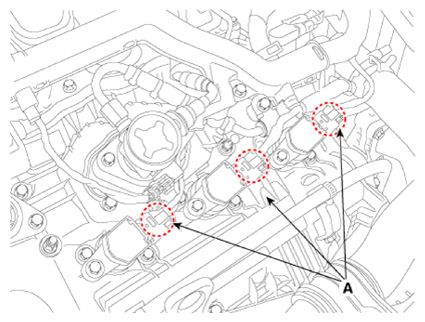

  1. Remove the connector (A) and reinstall it.
    G13427946Courtesy of KIA MOTORS AMERICA, INC.
    G13427947Courtesy of KIA MOTORS AMERICA, INC.

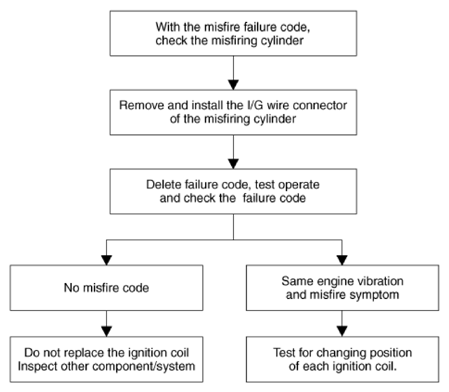

    G13427948Courtesy of KIA MOTORS AMERICA, INC.
