Repair Procedures: Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
Remove the front seat shield outer cover.
(Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")
Remove the front seat shield inner cover.
(Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

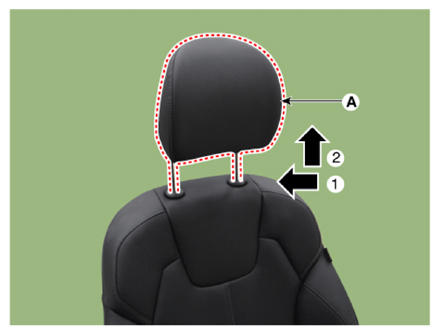

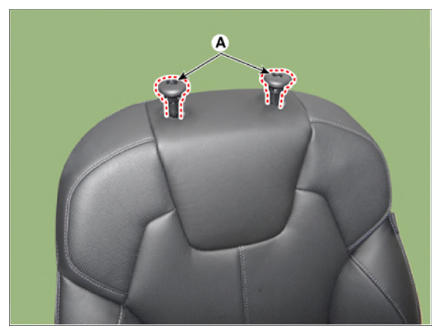

Push the lock pin and then pull out the front seat headrest (A).

Courtesy of KIA MOTORS AMERICA, INC.

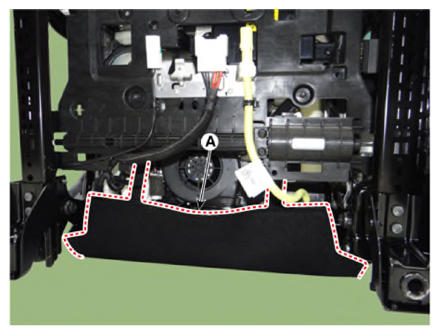

Remove the front seat lower protector (A).

Courtesy of KIA MOTORS AMERICA, INC.

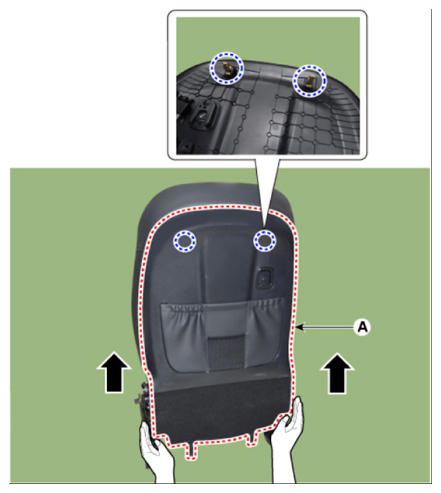

Remove the front seat back board (A).
1. Separate the upper back cover by pushing the lock pin in the direction of the arrow.
2. Remove the front seat back cover by lifting in the direction.
Courtesy of KIA MOTORS AMERICA, INC.

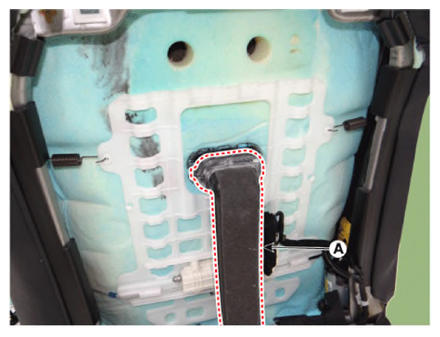

Disconnect the front seat air back ventilation duct (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the front seat lower connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

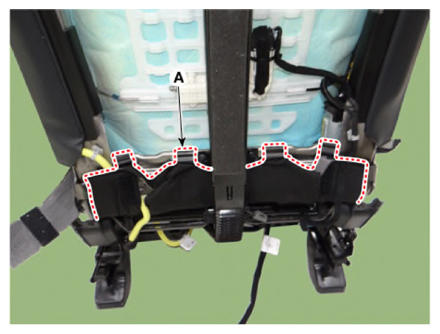

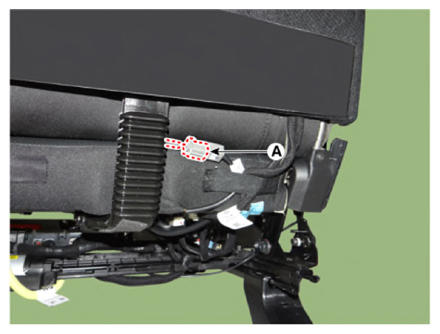

Disconnect the fixing hook (A) from the front seat back lower.

Courtesy of KIA MOTORS AMERICA, INC.

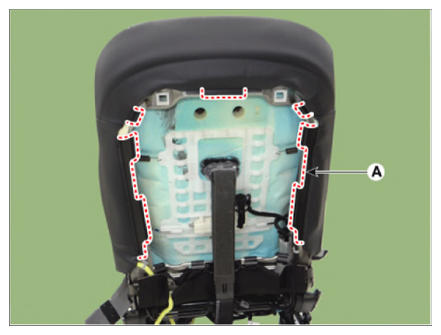

Disconnect the protector (A) from the front seat back frame.

Courtesy of KIA MOTORS AMERICA, INC.

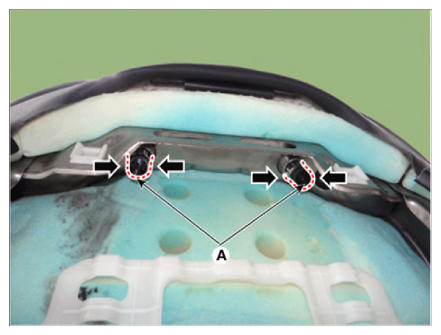

Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both sides of the lower part of the guides.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

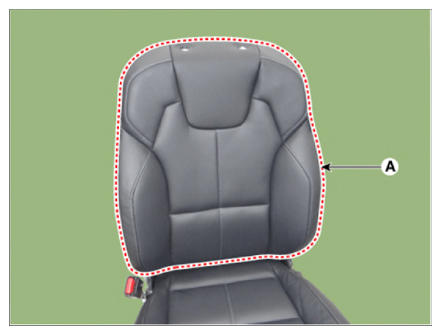

Remove the front seat back cover (A) from the front seat back frame.

Courtesy of KIA MOTORS AMERICA, INC.

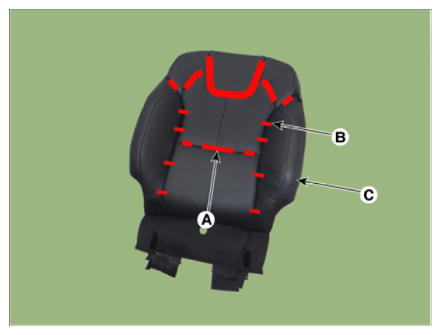

After removing the velcro tape (A) and hog - ring clips (B) inside the front seat back cover, remove the seat back covering (C).
CAUTION: Be careful not to allow the sponge insert wire to separate.

Courtesy of KIA MOTORS AMERICA, INC.

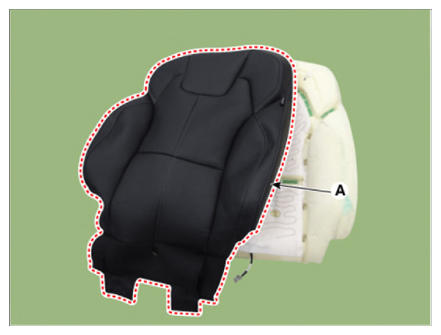

Remove the front seat back cover (A) from the front seat back pad.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.

Information

Make sure that the connectors are plugged in properly.
Replace any damaged clips.

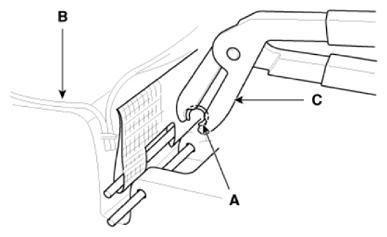

To prevent wrinkles, make sure that the material is stretched evenly over the cover (B) before securing the hog-ring clips (A).
Replace the hog-ring clips with new ones using special tool [09880-4F000].

Courtesy of KIA MOTORS AMERICA, INC.
