Components & Components Location: Components

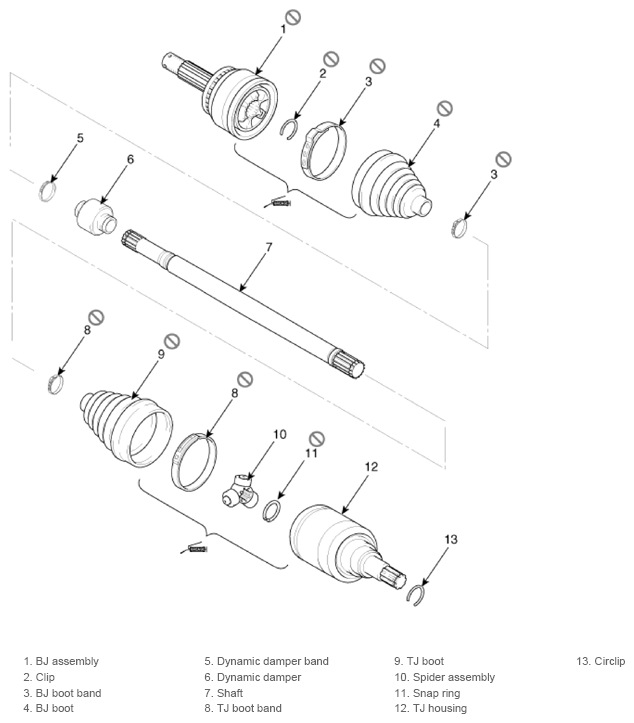

[RH]

G13310671Courtesy of KIA MOTORS AMERICA, INC.

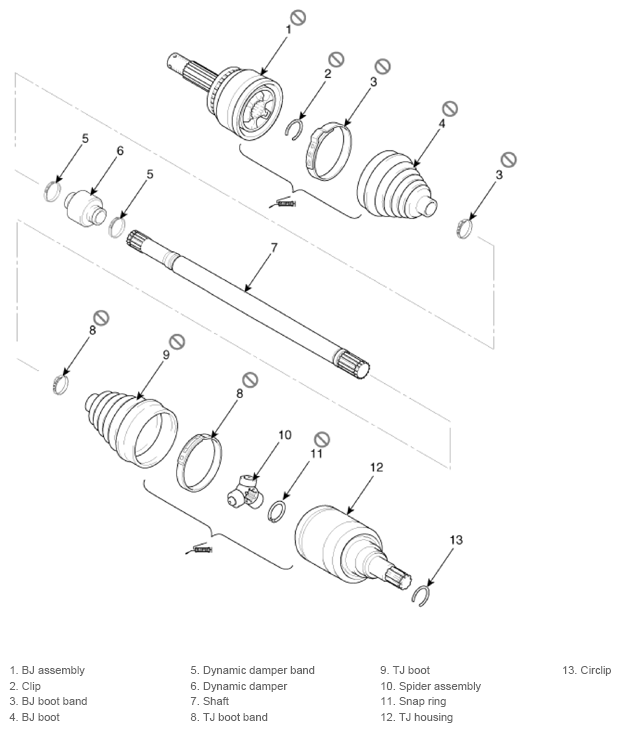

[LH]

G13310672Courtesy of KIA MOTORS AMERICA, INC.
