Component Inspection

Inspection Condition	Inspection Procedure	Reference

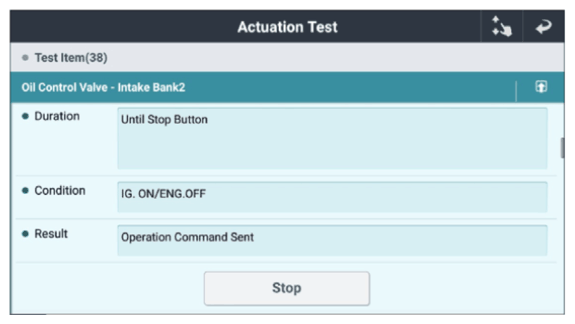

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Figure 1 below (Check the operating sound)

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the OCV - In (Bank2) and go to "VERIFICATION OF REPAIR " procedure.
