Repair Procedures: Replacement

1. Remove the front seat assembly.

   (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

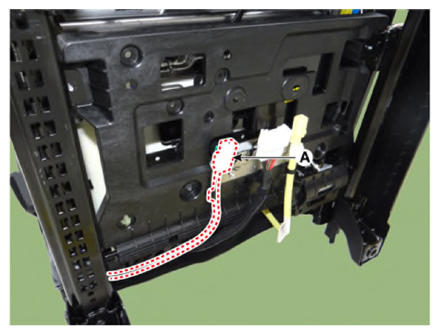

2. Disconnect the front seat belt buckle connector wiring (A).

   Courtesy of KIA MOTORS AMERICA, INC.

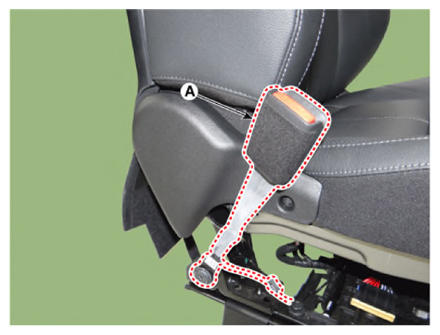

3. After loosening the mounting bolt, remove the front seat belt buckle (A).

   Tightening torque:

   39.2 - 53.9 N.m (4.0 - 5.5Kgf.m, 28.9 - 39.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

4. To install, reverse removal procedure.

Information

Make sure that the connectors are plugged in properly.
