Repair Procedures: Inspection
- Disconnect the negative (-) battery terminal.
- Remove the rear pillar trim.
(Refer to Body - "REAR PILLAR TRIM ")

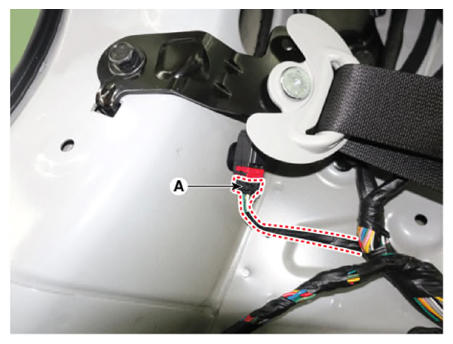

- Disconnect the PTG drive unit connector (A).

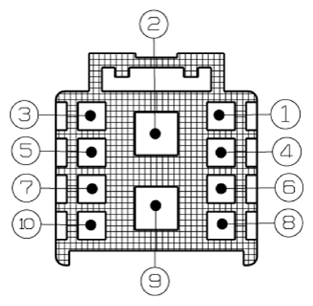

- Check the PTG drive unit operation by connecting power and ground as shown below.
| 1 | Half VCC |
| 2 | Sprindle_Motor, Close (-) |
| 4 | Half Sensor GND |
| 6 | Half Sensor 1 |
| 8 | Half Sensor 2 |
| 9 | Spindle_Motor, Close (+) |
| (2) | (9) | |
| Open | + | - |
| Close | - | + |
