Low Pressure Delivery Pipe

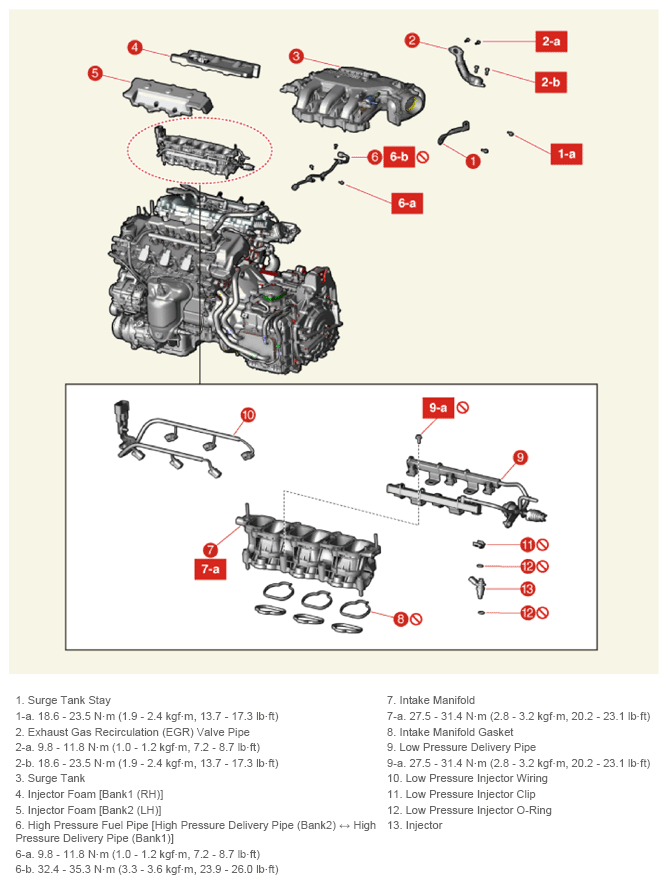

Fig 1: Injector Components Location With Torque Specification (Low Pressure Delivery Pipe)
G14797481Courtesy of KIA MOTORS AMERICA, INC.
