High Pressure Fuel Line

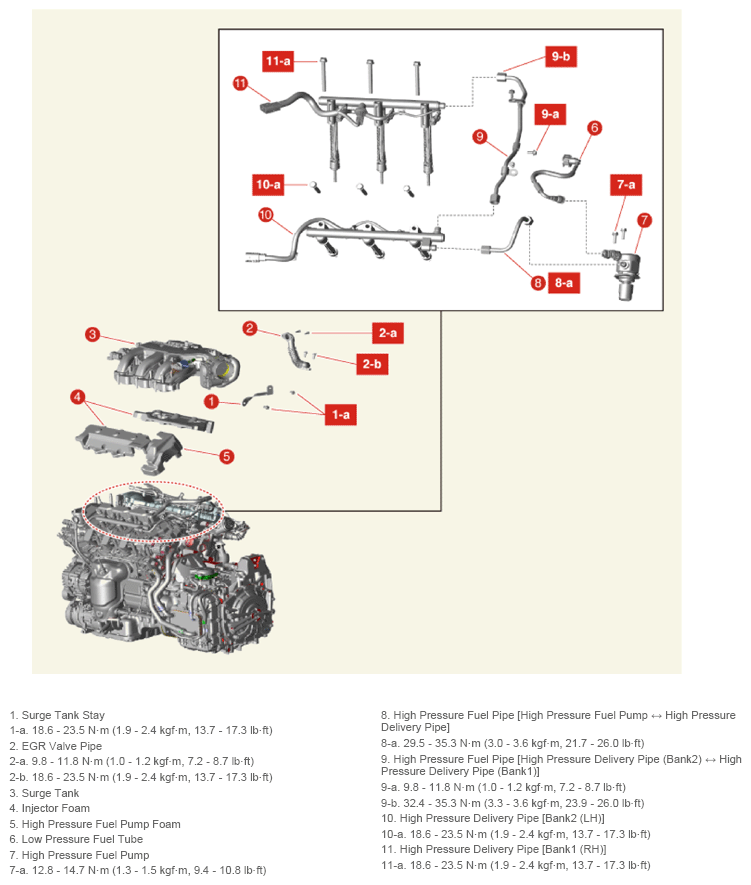

Fig 1: High Pressure Fuel Line Components Location With Torque Specification
G14797377Courtesy of KIA MOTORS AMERICA, INC.
