Removal & Installation: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Disconnect the battery negative (-) terminal.
  3. Move the left side rear seat forward as far as possible.

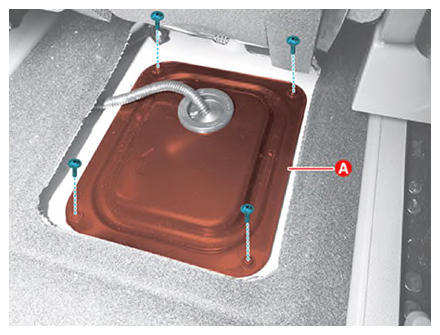

  4. Remove the fuel pump service cover (A).
    G14797427Courtesy of KIA MOTORS AMERICA, INC.

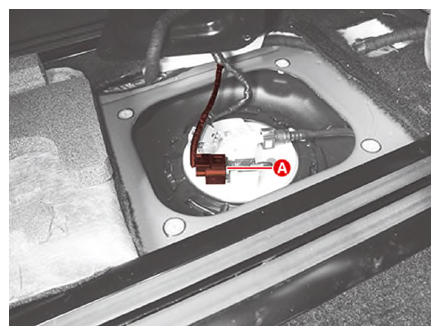

  5. Disconnect the Fuel Tank Pressure Sensor (FTPS) connector (A).
    G14797428Courtesy of KIA MOTORS AMERICA, INC.

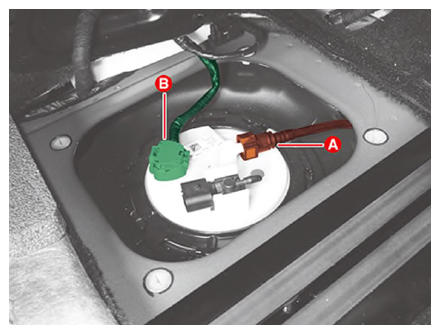

  6. Disconnect the fuel feed tube quick-connector (A) and fuel pump connector (B).
    G14797429Courtesy of KIA MOTORS AMERICA, INC.

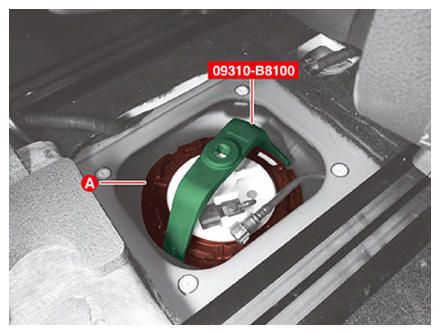

  7. Remove the plate cover (A) by using the SST (09310 - B8100).
G14797430Courtesy of KIA MOTORS AMERICA, INC.
