System Inspection: Notes
| GDI Injector Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
| Connector | Terminal | Connector | Terminal | ||
|

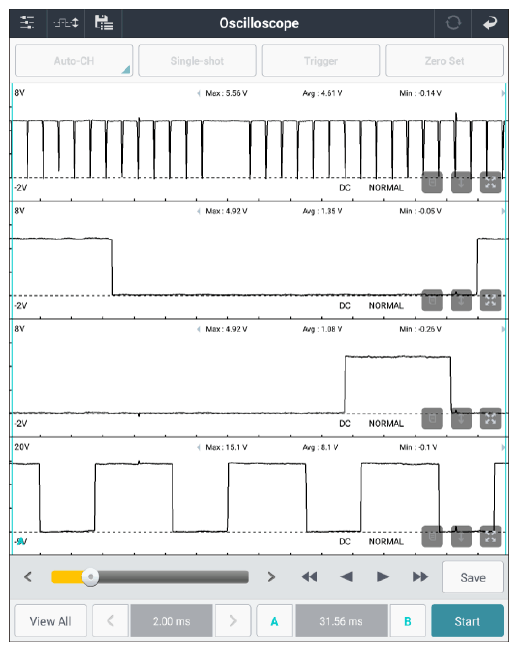

CKPS connector | 3 (signal) | CMPS - In connector | 1 (signal) | Fig. 1 |
| CMPS - Ex connector | 1 (signal) | VFS - In connector | 1 (control) | ||
Good
- Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "TIMING CHAIN INSPECTION " procedure.
