Smart Key Unit: Inspection: Buzzer
- Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to REMOVAL & INSTALLATION - 2WD
(Refer to REMOVAL & INSTALLATION - 4WD
- Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

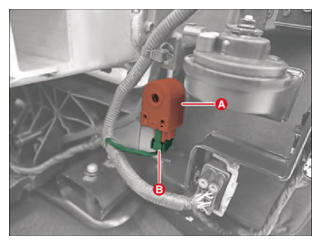

- Disconnect the connector (B) from buzzer (A).

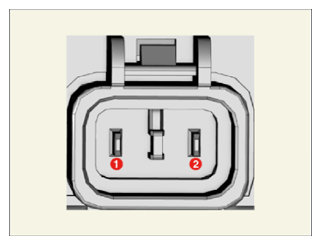

- Check for continuity between the terminals.
