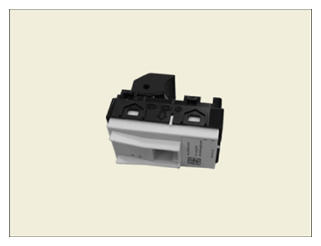

Power Window Sub Switch
- Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to REMOVAL & INSTALLATION - 2WD
(Refer to REMOVAL & INSTALLATION - 4WD
- Remove the passenger side front door trim.
(Refer to Body - "FRONT DOOR TRIM ")

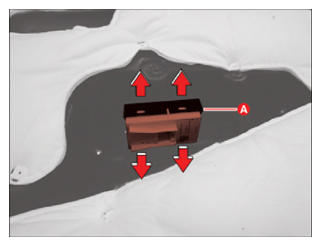

- Remove the power window sub switch (A) after pushing the hooks in the direction of arrow.
