Initialization of Front Motor Resolver Offset Automatic Calibration

  1. IG "OFF" and connect the KDS to the Data Link Connector.
  2. P range & IG "ON" (Power button LED "Red"), Select "Vehicle S/W Management"

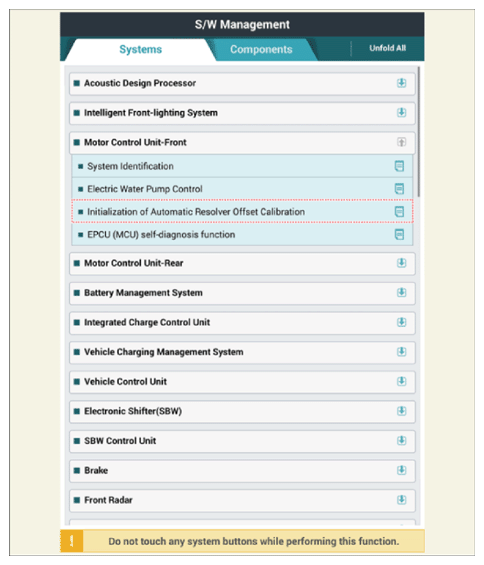

  3. Perform the "Motor Control Unit-Front" and "Initialization of Automatic Resolver Offset Calibration" using the KDS.
G14863554Courtesy of KIA MOTORS AMERICA, INC.
