Components & Components Location: Component

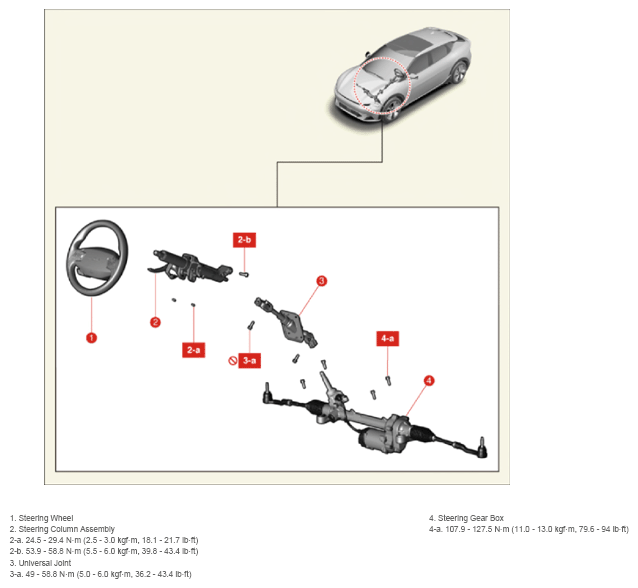

Fig 1: Motor Driven Power Steering System Components Location With Torque Specification
G14860370Courtesy of KIA MOTORS AMERICA, INC.
