Repair Procedures: Removal

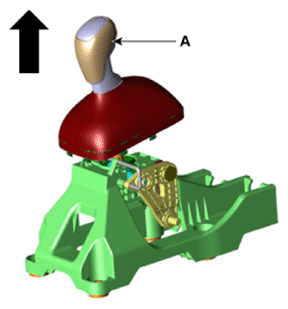

  1. Remove the knob (A) by pulling it in the direction of upward after removing the boots from the console upper cover.
    G14564445Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the select cable.

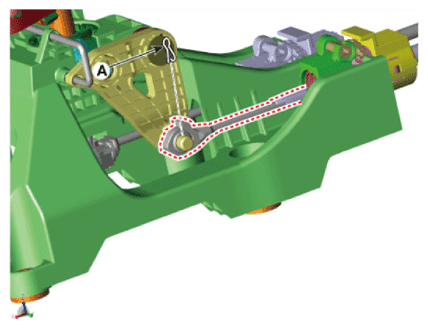

    1. Remove the snap pin (A).
      G14564446Courtesy of KIA MOTORS AMERICA, INC.

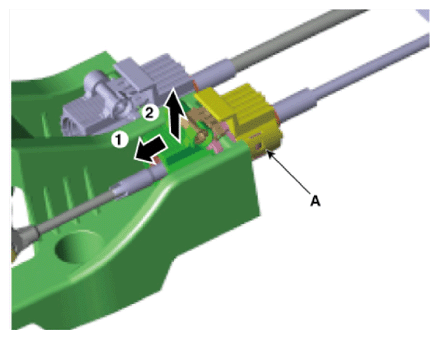

    2. Remove the select cable (A) from the shift lever.
    G14564447Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the shift cable.

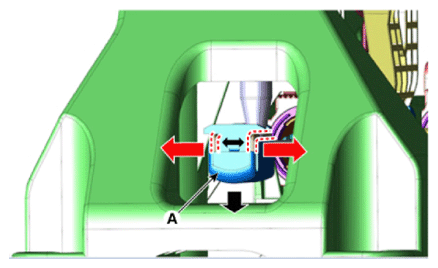

    1. Remove the snap pin (A) in the direction of the arrow.
      G14564448Courtesy of KIA MOTORS AMERICA, INC.

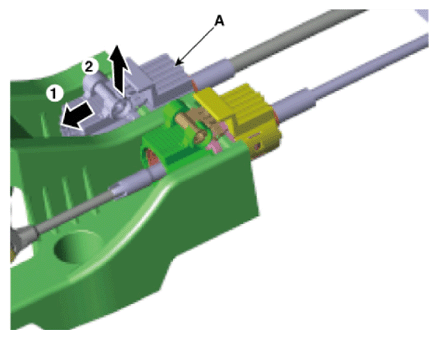

    2. Remove the shift cable (A) from the shift lever.
    G14564449Courtesy of KIA MOTORS AMERICA, INC.

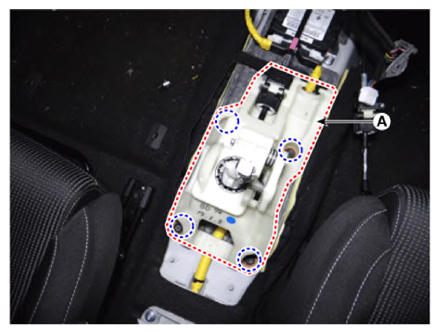

  5. Remove the shift lever assembly (A) after loosening the mounting bolts.

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

G14564450Courtesy of KIA MOTORS AMERICA, INC.
