Repair Procedures: Disassembly

  1. Remove the alternator.

    (Refer to Charging System - "ALTERNATOR ")

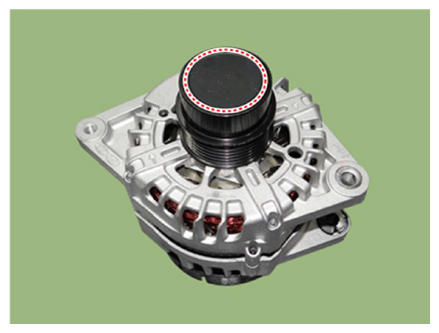

  2. Remove the OAD (Overrunning Alternator Decoupler) cap (A).
    G14560605Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When installing, replace with new OAD cap.

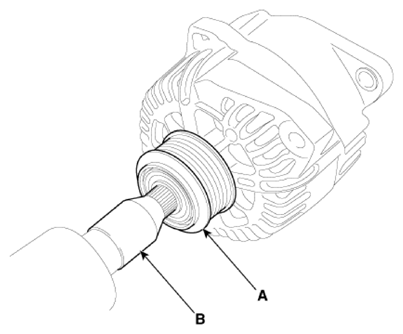

  3. Remove the OAD (Overrunning Alternator Decoupler) pulley (A) using the special tool.
    G14560606Courtesy of KIA MOTORS AMERICA, INC.

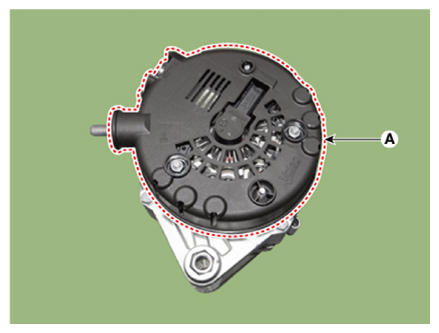

  4. Remove the rear cover (A) after removing nuts.
    G14560607Courtesy of KIA MOTORS AMERICA, INC.

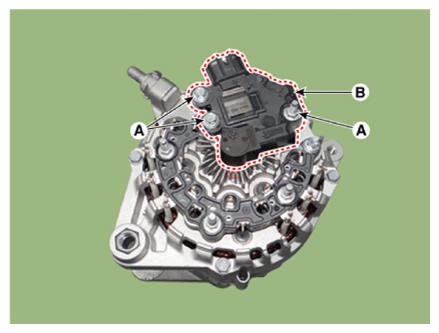

  5. Remove the mounting bolts (A) and the regulator assembly (B).
    G14560608Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the slip ring guide (A) after pulling it.
    G14560609Courtesy of KIA MOTORS AMERICA, INC.

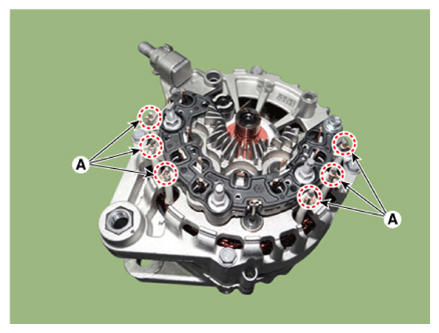

  7. Unsolder the 3 stator leads (A).
    G14560610Courtesy of KIA MOTORS AMERICA, INC.

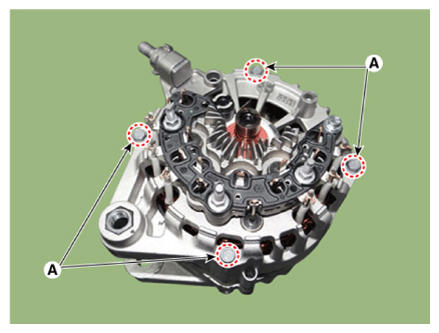

  8. Remove the 4 through bolts (A).
    G14560611Courtesy of KIA MOTORS AMERICA, INC.

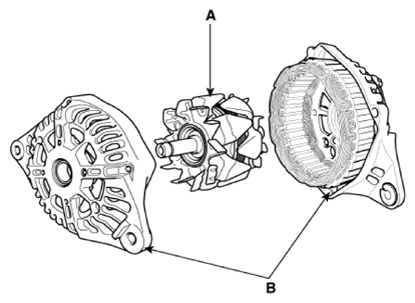

  9. Disconnect the rotor (A) and bracket (B).
    G14560612Courtesy of KIA MOTORS AMERICA, INC.
