Repair Procedures: Removal

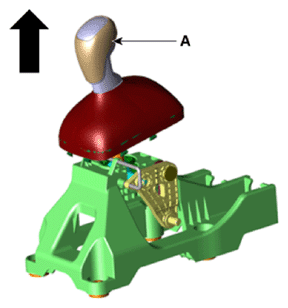

1. Remove the knob (A) by pulling it in the direction of upward after removing the boots from the console upper cover.

   Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the floor console assembly.

   (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

3. Remove the select cable.

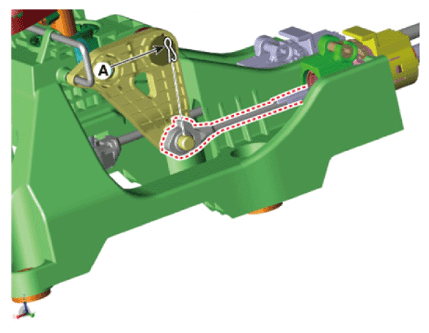

   1. Remove the snap pin (A).

      Courtesy of KIA MOTORS AMERICA, INC.

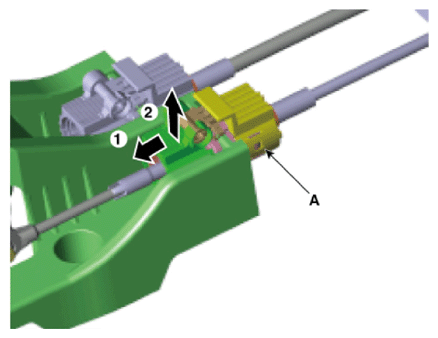

   2. Remove the select cable (A) from the shift lever.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the shift cable.

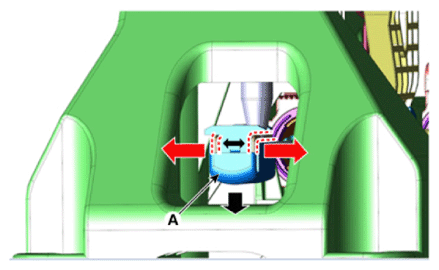

   1. Remove the snap pin (A) in the direction of the arrow.

      Courtesy of KIA MOTORS AMERICA, INC.

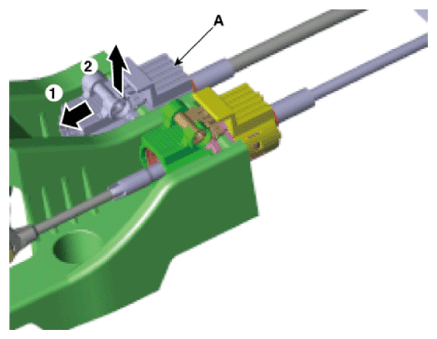

   2. Remove the shift cable (A) from the shift lever.

   Courtesy of KIA MOTORS AMERICA, INC.

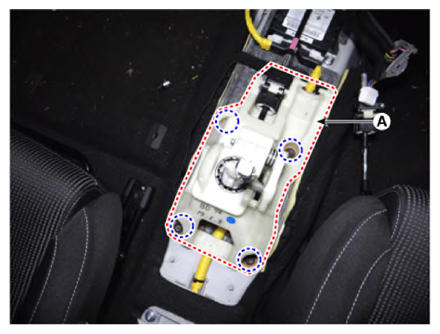

5. Remove the shift lever assembly (A) after loosening the mounting bolts.

Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
