Auto Detection Reset Procedure
NOTE:
After replacing the ETC module, the "ECM Auto Detection Reset" procedure must be performed.
- Switch "OFF" the ignition.
- Connect the KDS to Data Link Connector (DLC).
- Switch "ON" the ignition.
- Select "Vehicle, Model year, Engine, System".
- Select "Vehicle S/W Management".

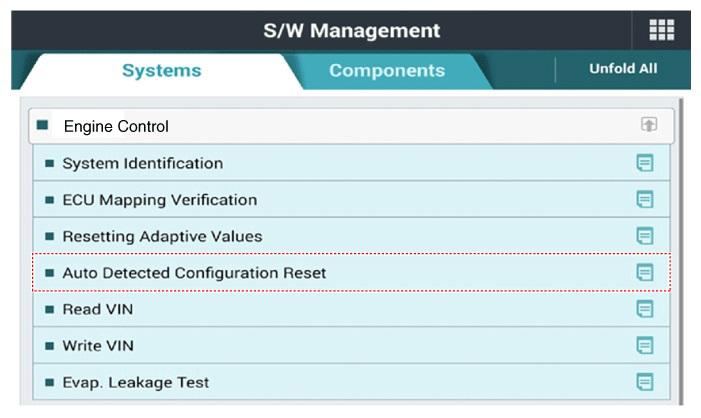

- Select "ECM Auto Detection Reset".
 Courtesy of KIA MOTORS AMERICA, INC.
|
