Home >> Kia >> 2022 >> Sorento Plug-In Hybrid SX >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System (PHEV) >> Injector >> Components & Components Location >> Component
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Components & Components Location: Component

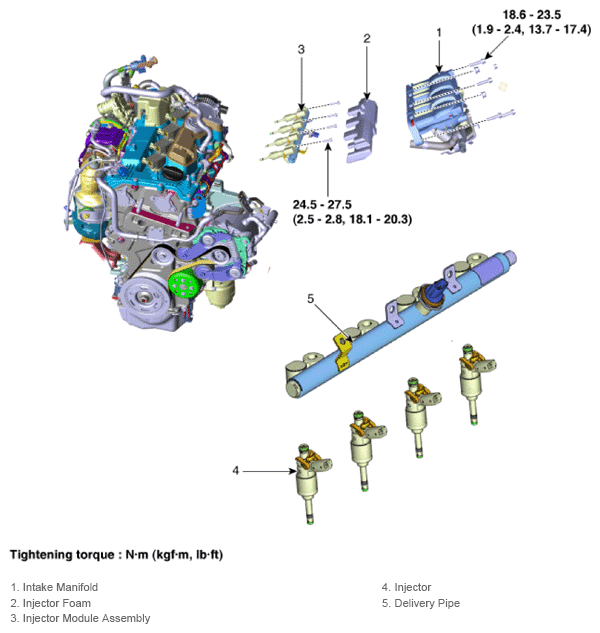

Fig 1: Injector Components Location With Torque Specification
G14957199Courtesy of KIA MOTORS AMERICA, INC.

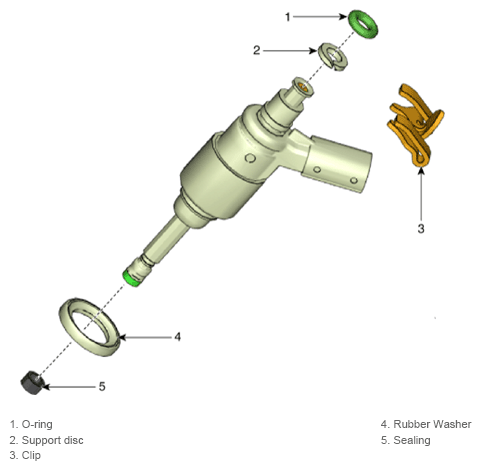

G14957200Courtesy of KIA MOTORS AMERICA, INC.
