Smart Key Code Saving

WARNING: This page is about a different variant/trim than selected.
  1. Connect the VCI II to the Data Link Connector (DLC).

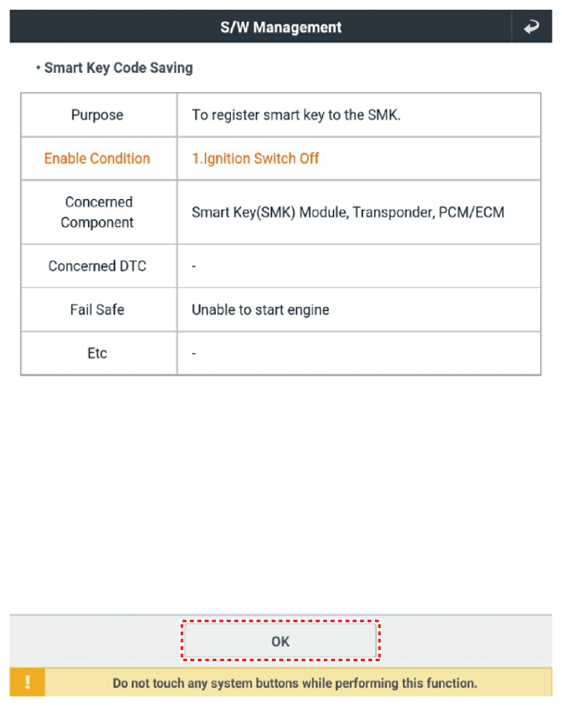

  2. Select the vehicle model and then do "Smart key code saving".

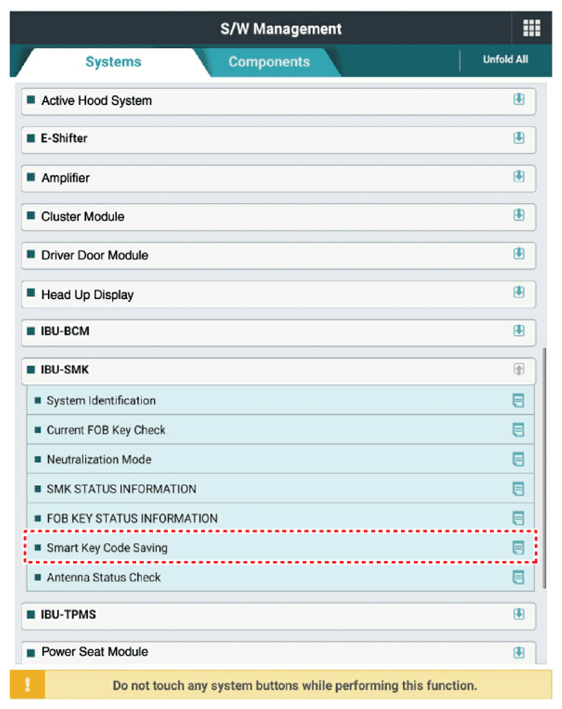

    G13578739Courtesy of KIA MOTORS AMERICA, INC.
    G13578740Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

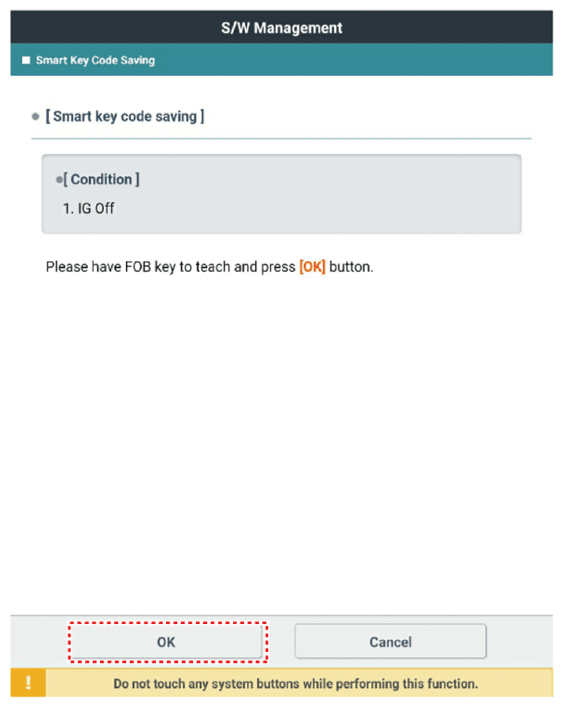

    G13578741Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.
  5. Input the "Pin code" for first key teaching.

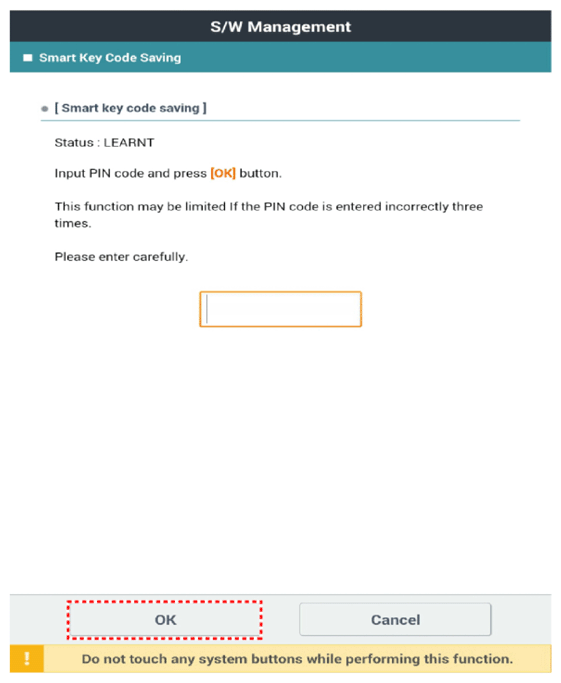

    G13578742Courtesy of KIA MOTORS AMERICA, INC.

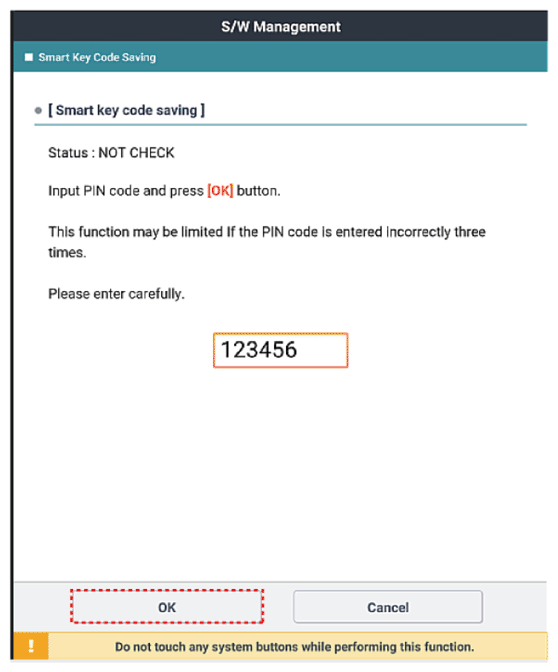

    G13578743Courtesy of KIA MOTORS AMERICA, INC.

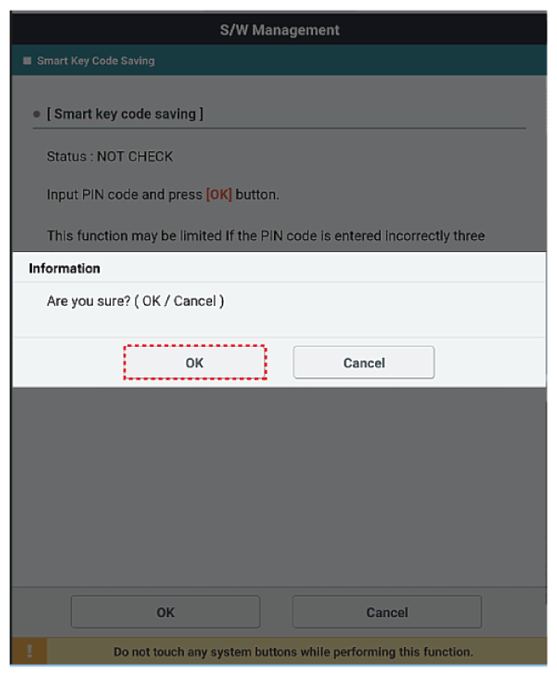

    G13578744Courtesy of KIA MOTORS AMERICA, INC.

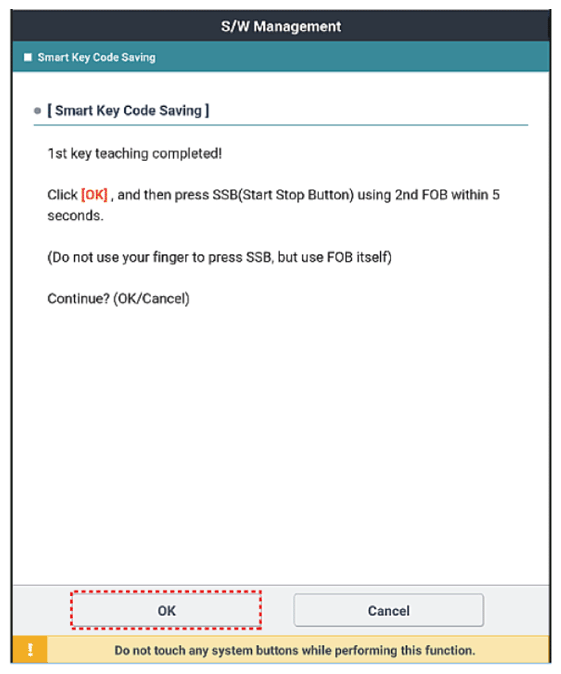

  6. Confirm the message "First key teaching completed".

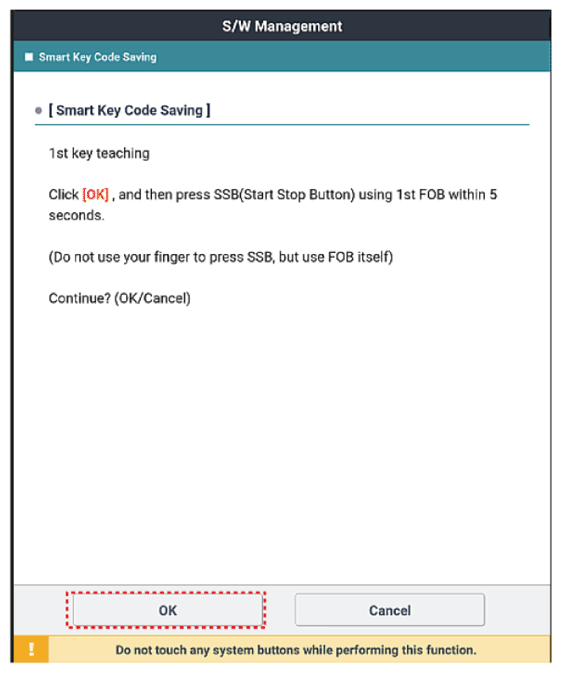

    G13578745Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".
    G13578746Courtesy of KIA MOTORS AMERICA, INC.

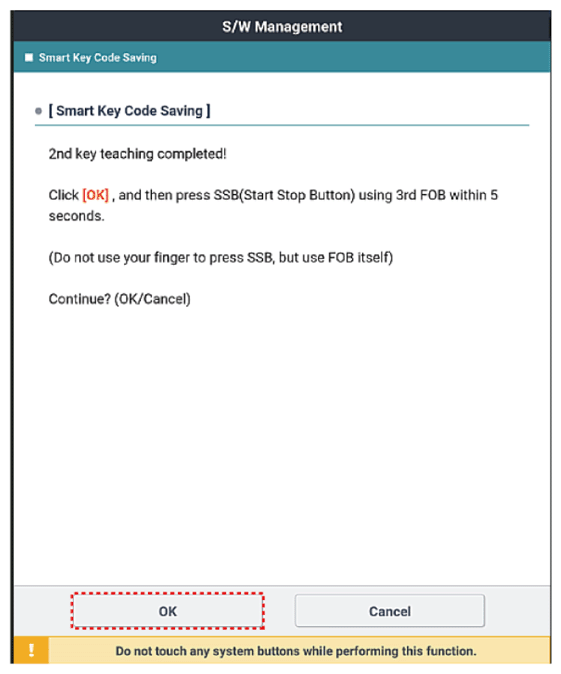

  8. Confirm the message "Second key teaching completed".
    G13578747Courtesy of KIA MOTORS AMERICA, INC.

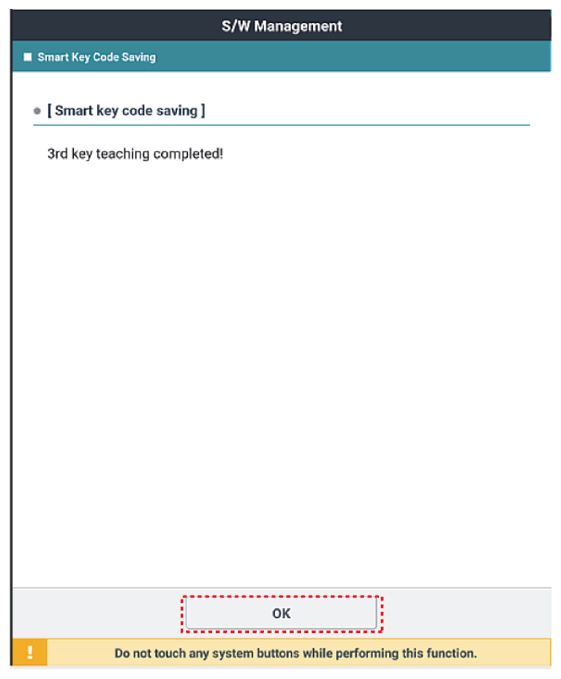

    G13578748Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be shown as below when key teaching process is completed.

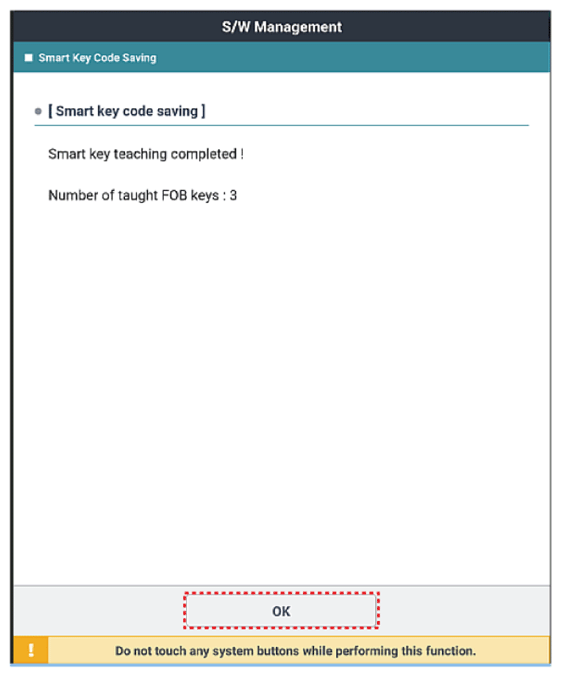

    G13578749Courtesy of KIA MOTORS AMERICA, INC.
