Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Install the ECTS to the specified torque.
  • If ECTS is dropped, it may cause internal damage. Do not use it.

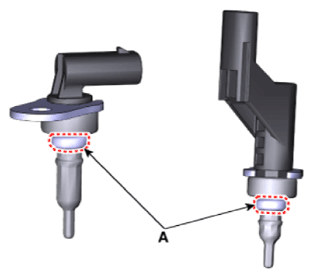

  • Apply the engine coolant to the O-ring (A).
    G14957019Courtesy of KIA MOTORS AMERICA, INC.
  1. Install in the reverse order of removal.
  2. Fill the engine cooling system with coolant.

    (Refer to Engine Mechanical System - "COOLANT ")
