Off-Line on KDS
WARNING: This page is about a different variant/trim than selected.

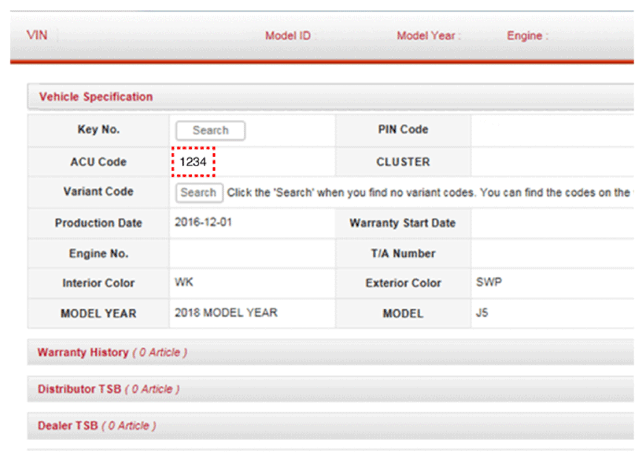

- Confirm the ACU variant coding code from the KDS server after inputting the VIN to the KDS sever.
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Switch "OFF" ignition, and connect KDS.
- With ignition "ON" & Engine "OFF", select vehicle name and airbag system.

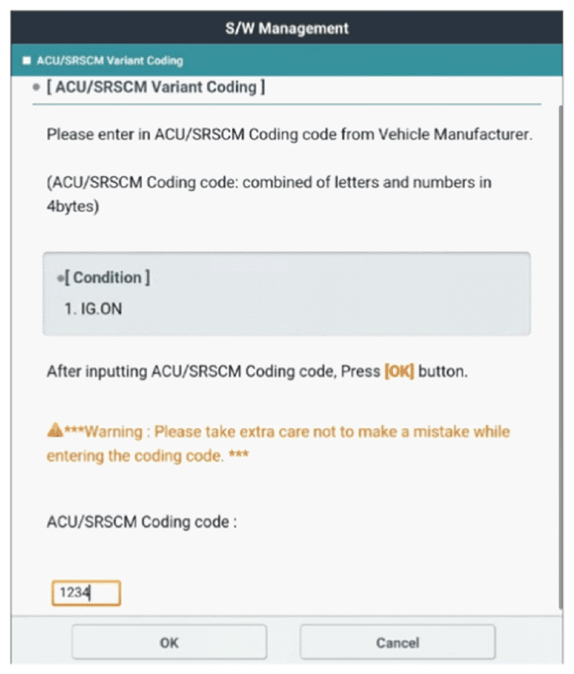

- Select Variant Coding mode.
- Input the ACU Coding code.
 Courtesy of KIA MOTORS AMERICA, INC.
|
