Repair Procedures: Removal

  1. Disconnect the battery negative (-) terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

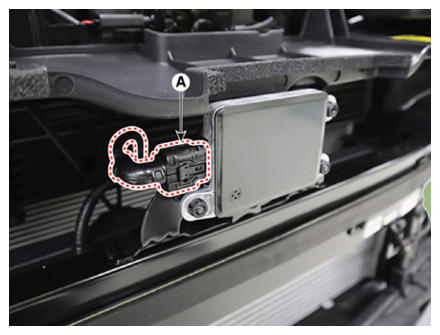

  3. Disconnect the front radar connector (A).
    G14998845Courtesy of KIA MOTORS AMERICA, INC.

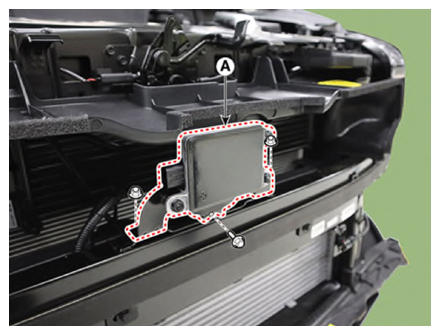

  4. Remove the front radar (A) after loosening the bolt and nuts.
G14998846Courtesy of KIA MOTORS AMERICA, INC.
