Repair Procedures: Removal

  1. You should read the specification information for the front view camera that is installed in the vehicle before replacing it with a new front view camera.

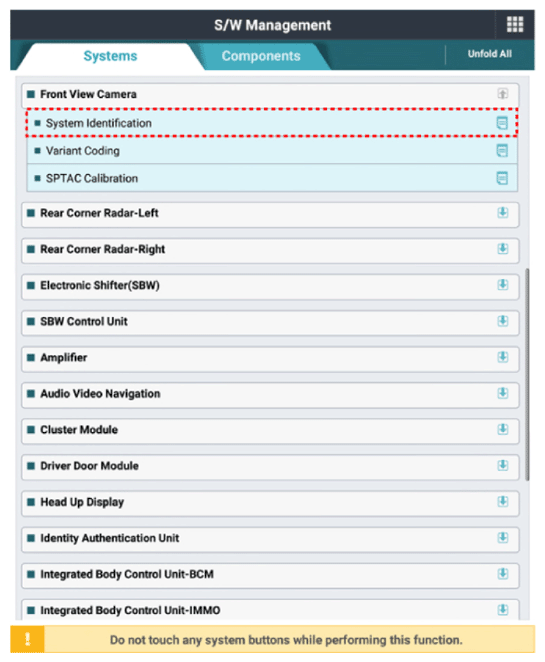

    1. Connect the VCI-II wireless adapter to the Data Link Connector (DLC) in driver side crash pad lower panel, and turn on KDS.
    2. Select the 'S/W Management' and 'Car model'.
    3. Select "Front View Camera" and "System Identification".
    G14998803Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the battery negative (-) terminal.

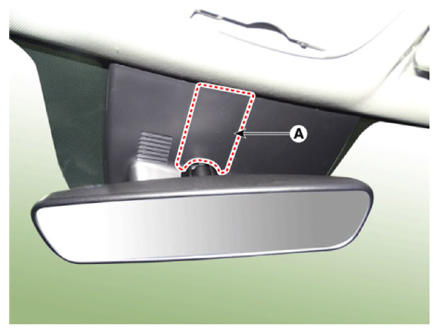

  3. Remove the inside rear view mirror cover (A).
    G14998804Courtesy of KIA MOTORS AMERICA, INC.

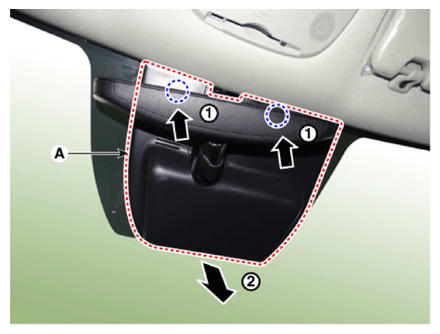

  4. Remove the multi cover (A).
    G14998805Courtesy of KIA MOTORS AMERICA, INC.

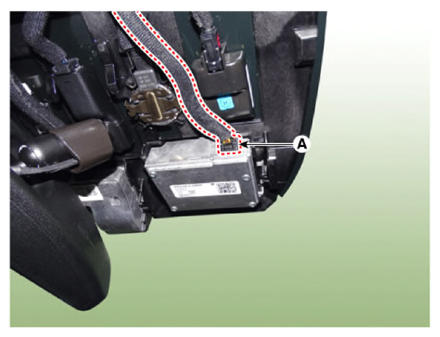

  5. Disconnect the front view camera connector (A).
    G14998806Courtesy of KIA MOTORS AMERICA, INC.

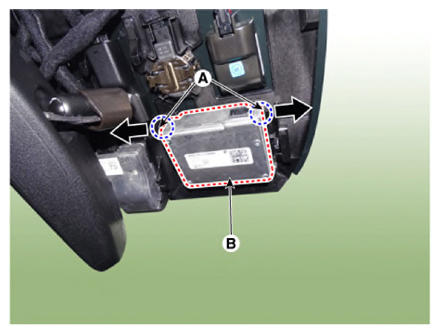

  6. Separate the fixed points (A) of coupler, remove the front view camera (B).
G14998807Courtesy of KIA MOTORS AMERICA, INC.
NOTE: When separate the fixed points (A), be careful not to damage it.
