MDPS Tuning Data Setting Procedure

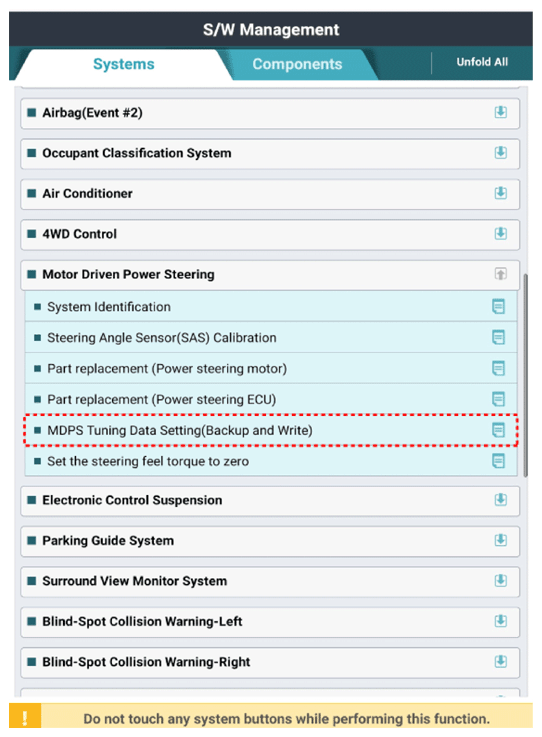

Select "MDPS Tuning Data Setting (Backup and Write)"

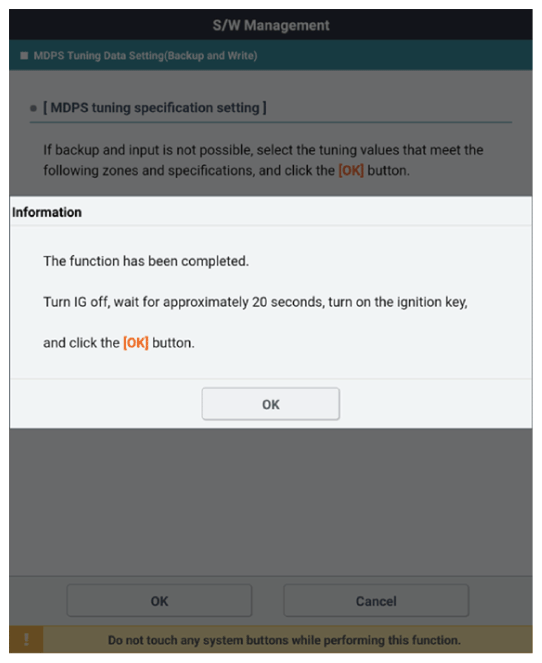

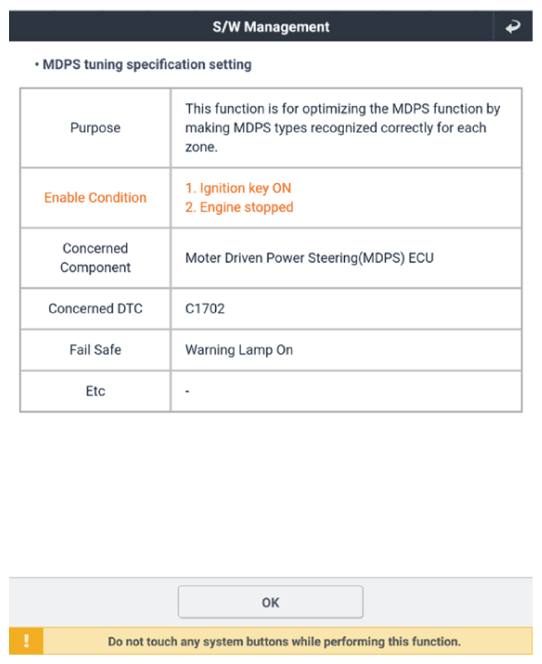

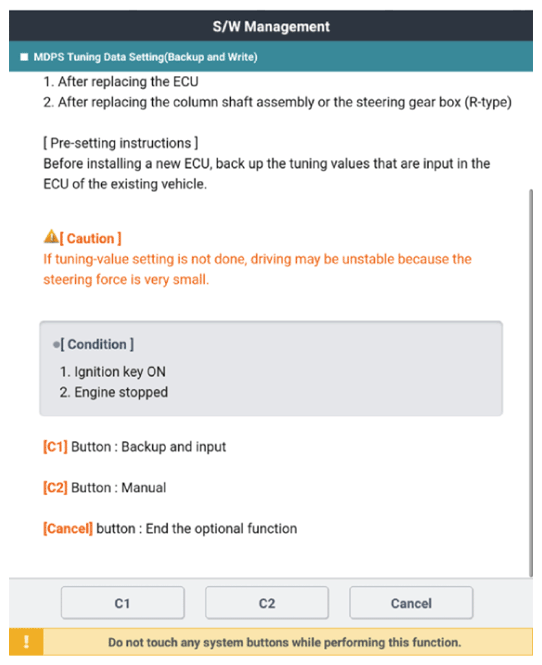

Proceed with the test according to the screen instructions.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

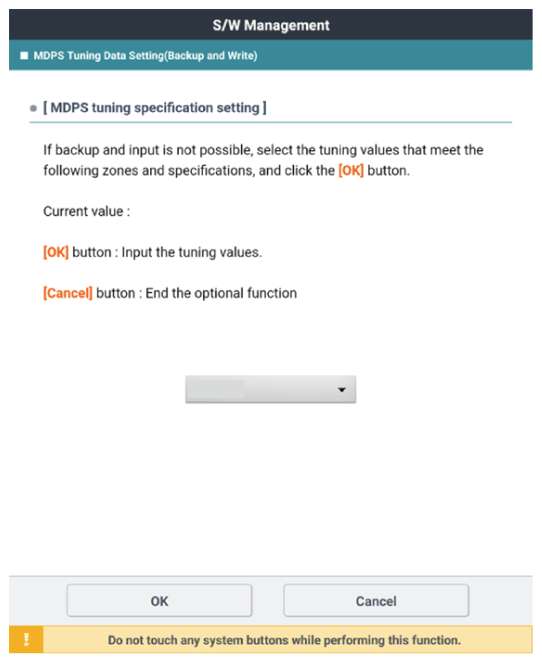

Select "C2" Manual Button.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
