SAS Calibration

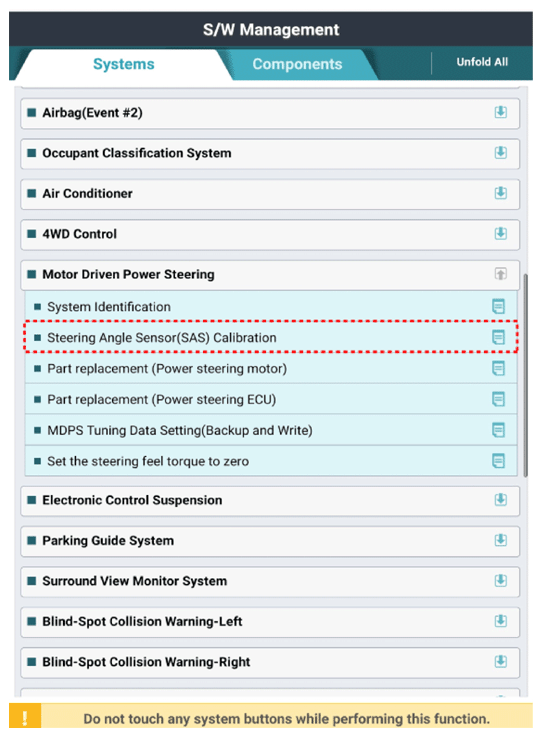

  1. Select "Steering Angle Sensor (SAS) Calibration".
  2. Proceed with the test according to the screen instructions.
G14996803Courtesy of KIA MOTORS AMERICA, INC.

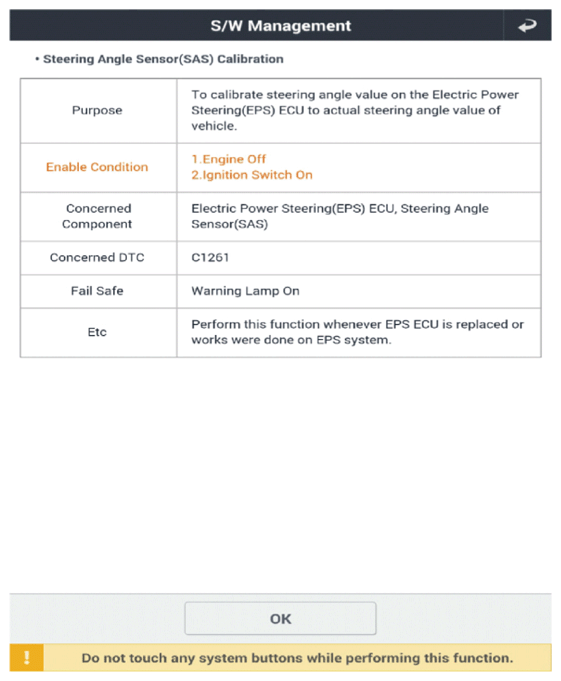

G14996804Courtesy of KIA MOTORS AMERICA, INC.

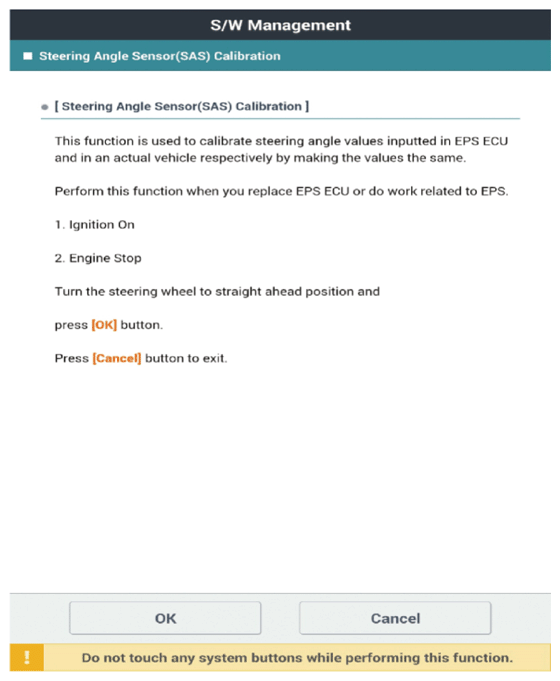

G14996805Courtesy of KIA MOTORS AMERICA, INC.

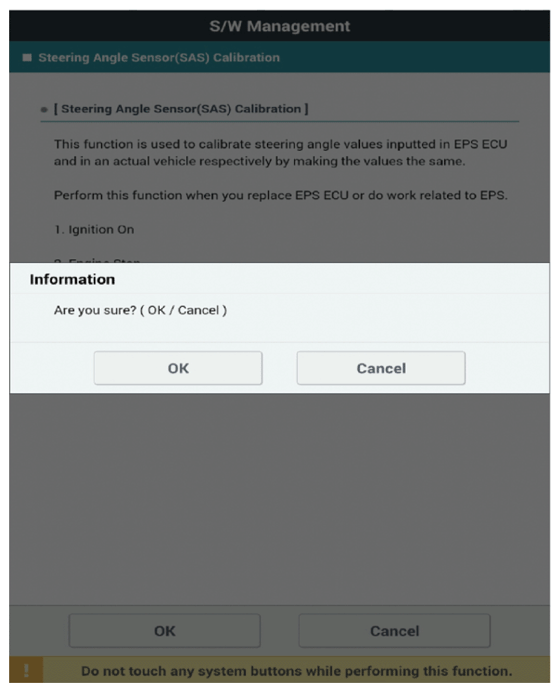

G14996806Courtesy of KIA MOTORS AMERICA, INC.

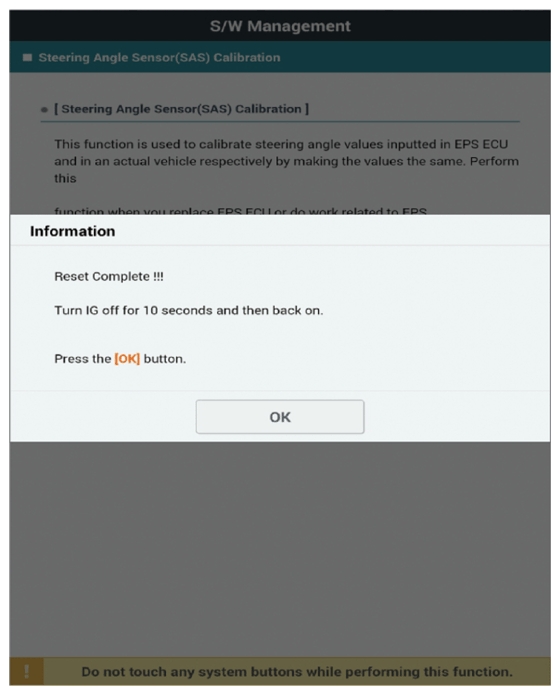

G14996807Courtesy of KIA MOTORS AMERICA, INC.
