High Pressure Delivery Pipe

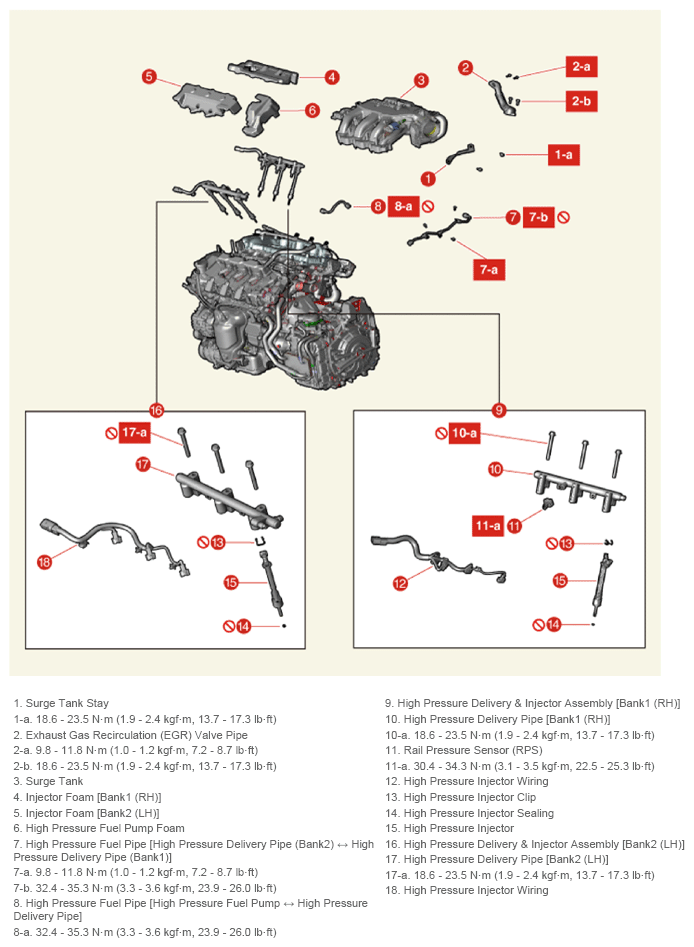

Fig 1: Injector Components Location With Torque Specification (High Pressure Delivery Pipe)
G14797482Courtesy of KIA MOTORS AMERICA, INC.
