Smart Key Code Saving

WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.

Connect the VCI II in driver side crash pad lower panel, turn the power on KDS.

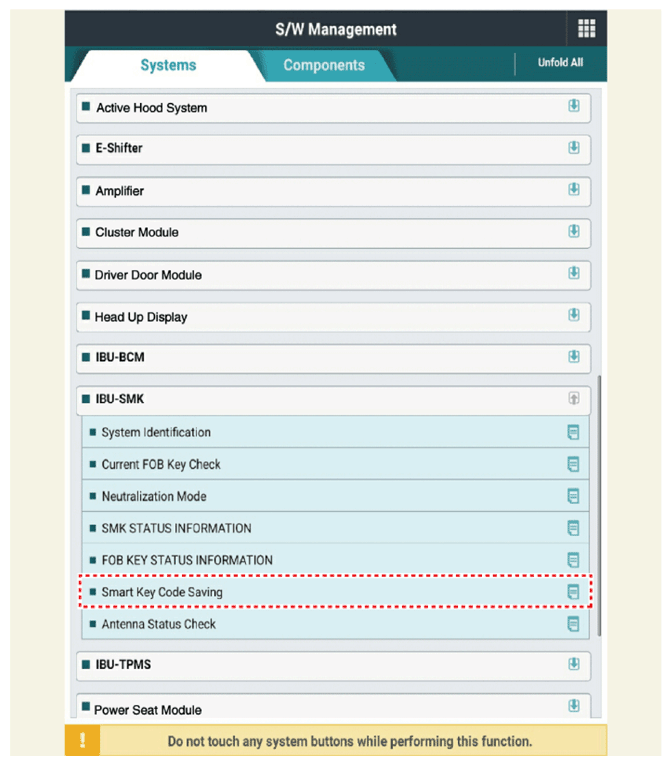

Select the vehicle model and then do "Smart Key Code Saving". After selecting, push "OK" key.

Courtesy of KIA MOTORS AMERICA, INC.

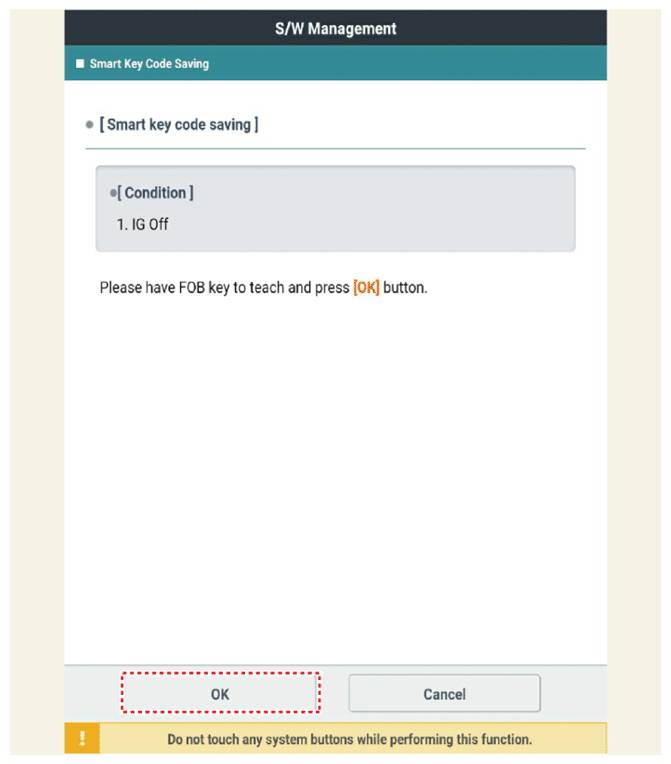

After having to teach the smart key, push "OK" key.

Courtesy of KIA MOTORS AMERICA, INC.

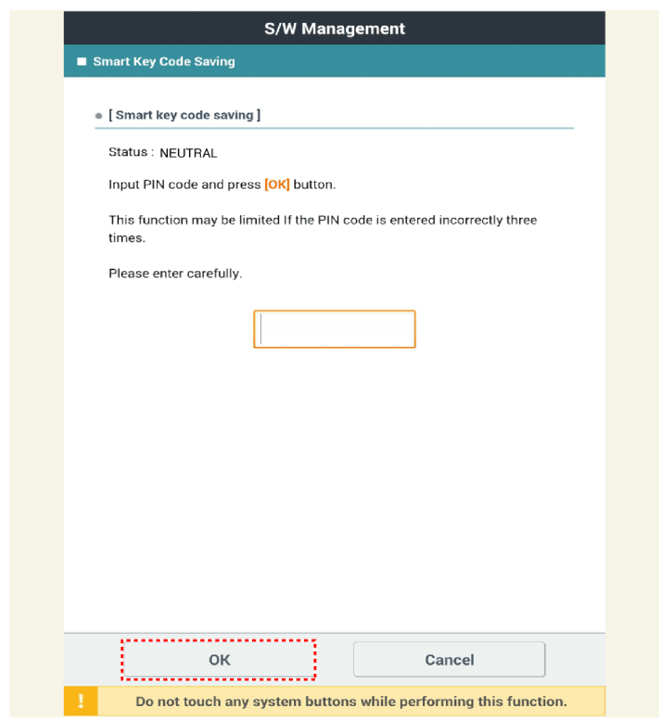

Input the "Pin code" for first key teaching.

Courtesy of KIA MOTORS AMERICA, INC.

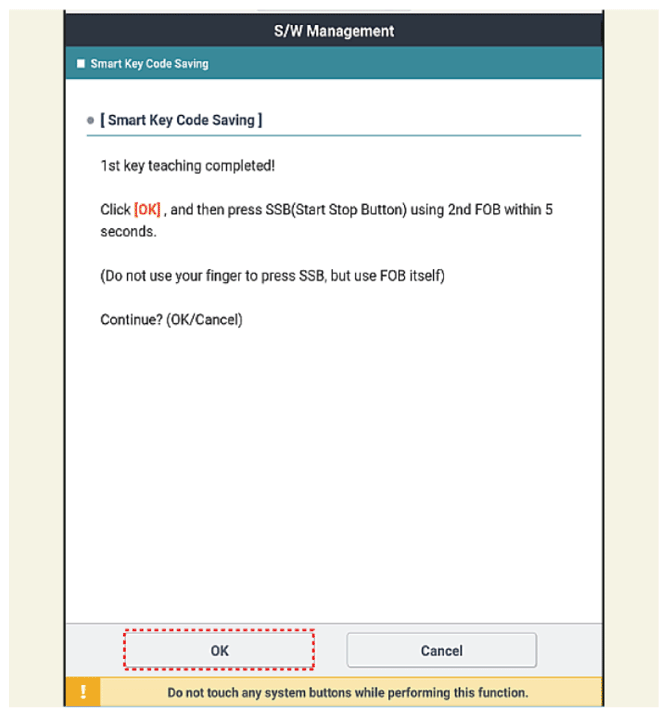

Confirm the message "First key teaching completed".

Courtesy of KIA MOTORS AMERICA, INC.

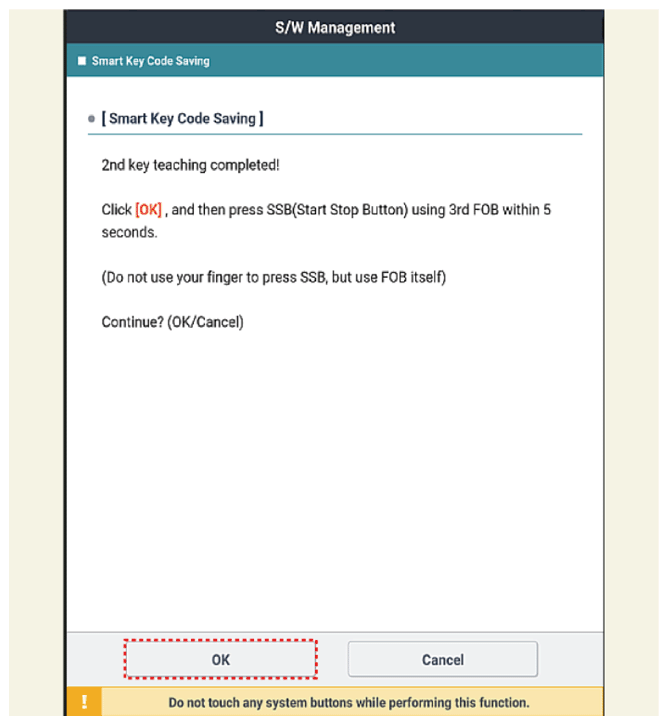

Confirm the message "Second key teaching completed".

Courtesy of KIA MOTORS AMERICA, INC.

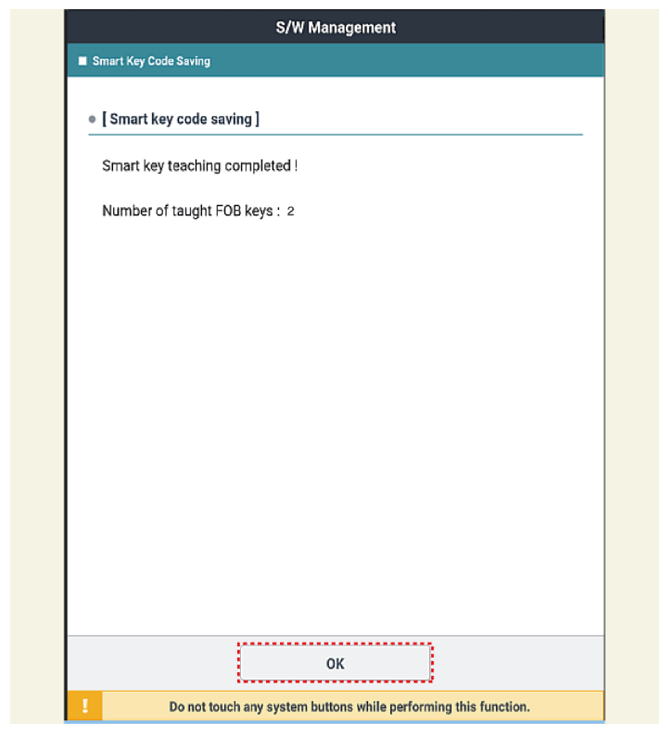

Then the screen will be shown as below when key teaching process is completed.

Courtesy of KIA MOTORS AMERICA, INC.
