Removal And Installation: Removal

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.

Remove the console upper cover.
(Refer to Body - " CONSOLE UPPER COVER ")

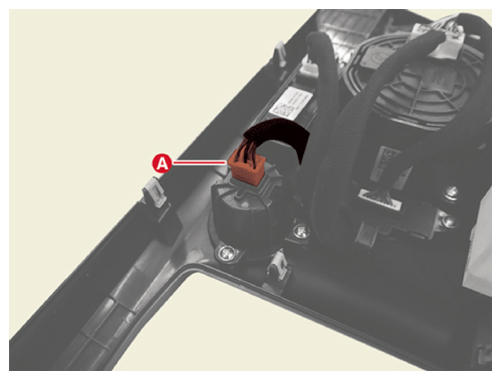

Disconnect the Start/Stop Button (SSB) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

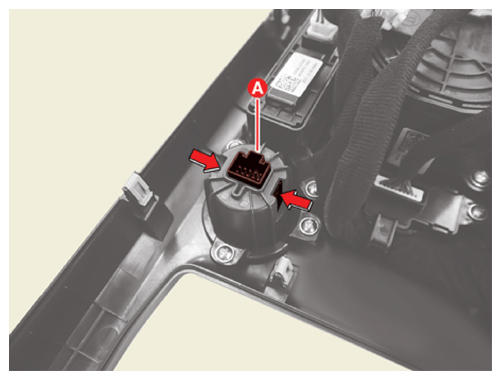

Remove the SSB (A) by pressing the hooks.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
