Front Door Outside Handle

Remove the door outside handle.
(Refer to Body - " FRONT DOOR OUTSIDE HANDLE ")

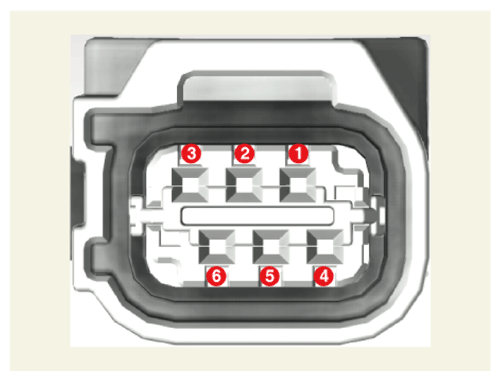

Disconnect the front door outside handle connector and then check for continuity between terminals No 1 and No 6.

G15901997

Courtesy of KIA MOTORS AMERICA, INC.

Terminal	Function
Terminal	SMK	NFC
1	LED Battery (+)	Battery (+)
2	Antenna 1	-
3	Lock/Unlock button	L-CAN (Low)
4	LED Ground	L-CAN (High)
5	Antenna 2	-
6	Button Ground	Ground
