Power Window Main Switch

  1. Remove the driver side front door trim.

    (Refer to Body - " FRONT DOOR TRIM  ")

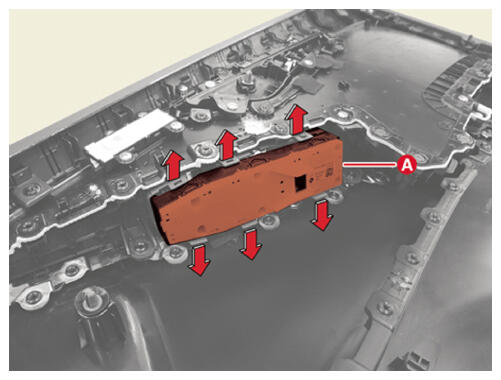

  2. Remove the power window main switch (A) after pulling the hooks in the direction of arrow.
G15901951Courtesy of KIA MOTORS AMERICA, INC.

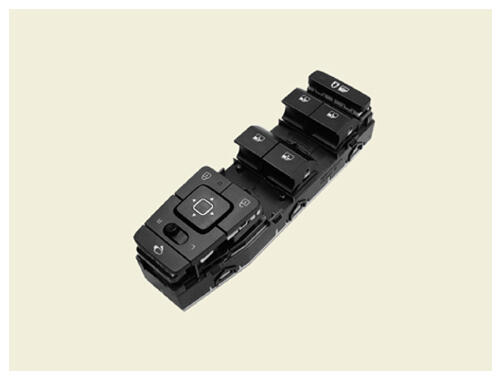

G15901952Courtesy of KIA MOTORS AMERICA, INC.
