Components And Components Location

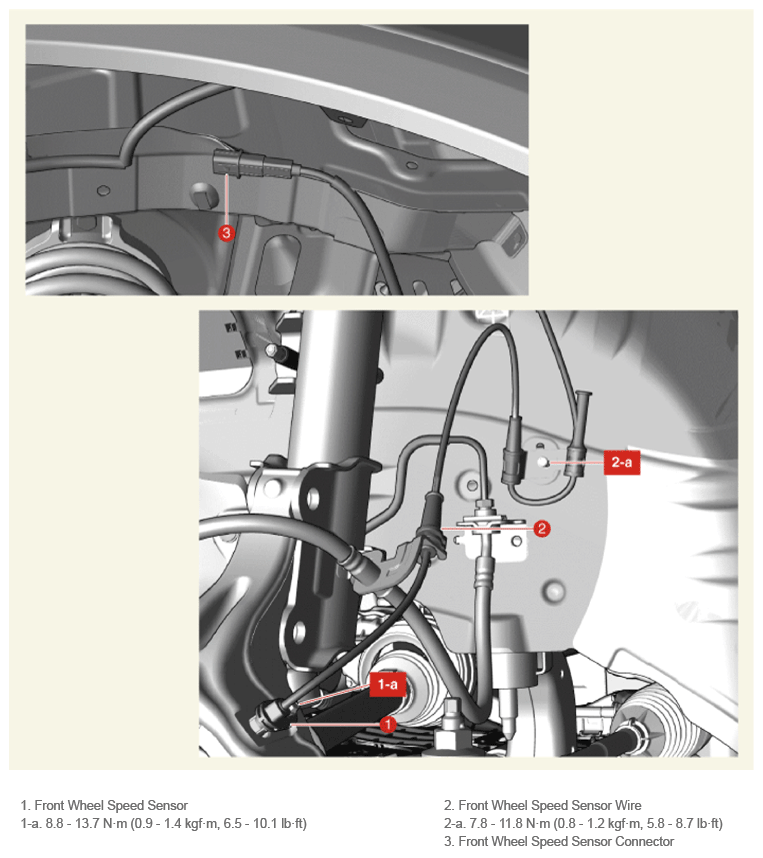

Fig 1: Front Wheel Speed Sensor Components Location With Torque Specification
G15900758Courtesy of KIA MOTORS AMERICA, INC.
