Components And Components Location

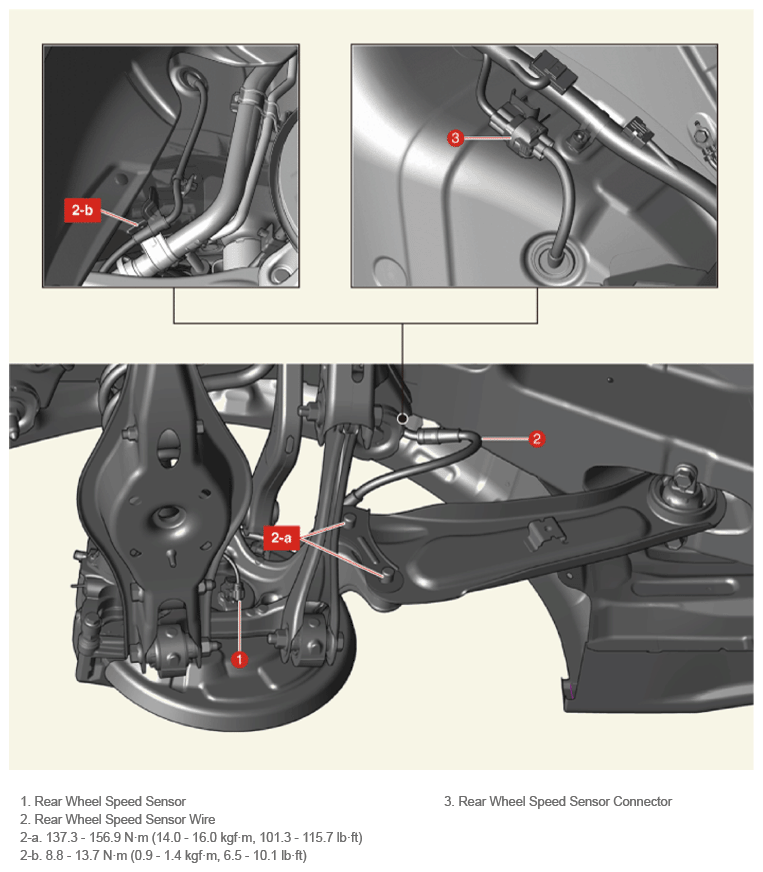

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specification
G15900768Courtesy of KIA MOTORS AMERICA, INC.
